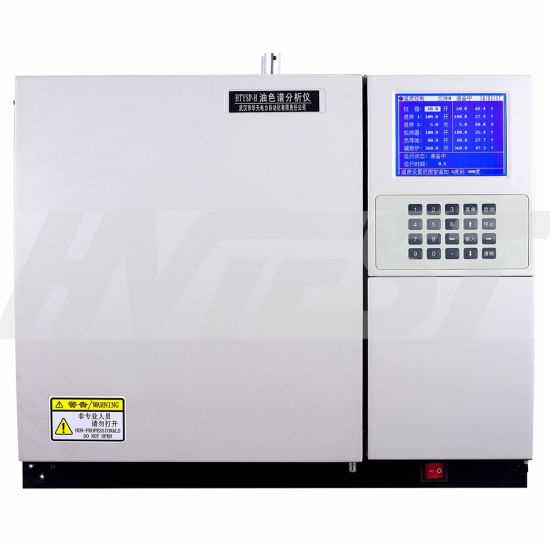

Wuhan HTYSP-H Oil Dissolved Gas Analyzer

- Display: 192×64 LCD
- Temperature control area: 6 loops
- Temperature control range: Room temperature: ＋5℃～400℃, increment: 1℃, accuracy: ±0.1℃
- Programmed temperature order: 16
- Program rise rate: 0.1～40℃/min
- Gas path control: Mechanical valve control mode, electronic pressure flow control mode
- External: 4 loops
- Sample injector type: Filling column, capillary tube, six way valve gas inlet, automatic headspace sampling, etc.
- Number of detectors: 5: FID, TCD, ECD, FPD, NPD (optional)
- Start sampling: Manual, auto
- Communication: IEEE802.3
Accessories
- Oil Dissolved Analyzer
- Multi Function Shaker
- Nitrogen Hydrogen Air 3 in 1 Generator
- Uni-polar pressure reducing valve
- Signal Cable
- Program CD
- Ignitor
- Wrench/ Screwdriver
- Sample Injector
- Serial Cable

Datasheet
