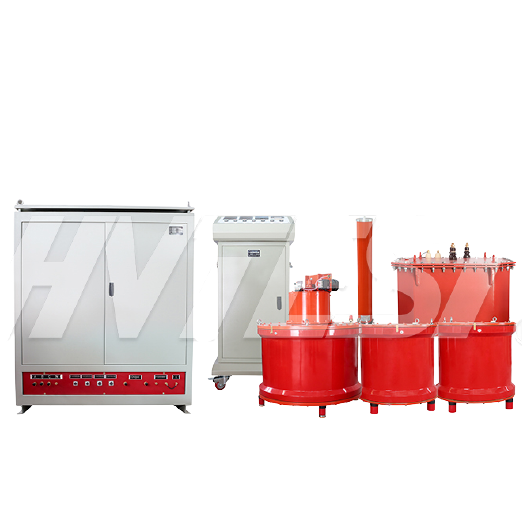

Wuhan HTXZ-200/25 Power Frequency Series Resonant Test System (200kVA; 25kV)

Rated output voltage: 0~60kV (AC RMS) and below

Output frequency: 50Hz

Resonance voltage waveform: Pure sine wave, waveform distortion rate ≤1%

Work system: Full power conticontrol consolenuous working time of 1min

Quality factor: 10~40

Maximum test capacity: 3000kVA and below

Working power supply: 380V±15%, Power frequency 50Hz

Control console: 30kW

Voltage regulator: 30kVA(electric)

Reactor (dry): 200kVA/25kV Adjustable one

Excitation transformer (dry): 30kVA dry

Voltage divider: 30kV

Scope of application: hydrodynamo.0.4～1.0μF.(10kV/40MW)
