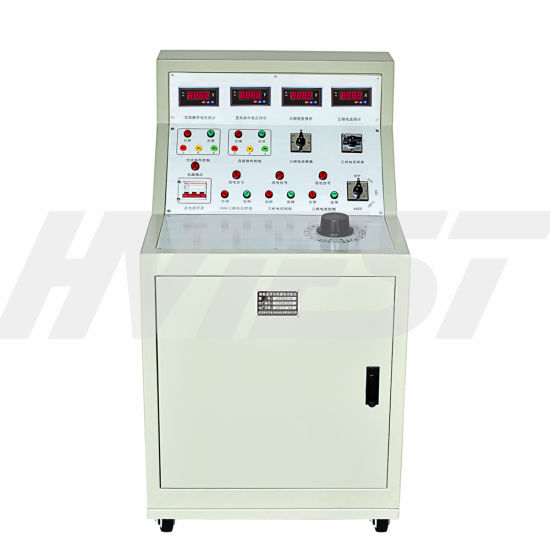

Wuhan HTKGG-H Switchgear Test Equipment (three-phase four-wire AC380V)

- Input power: three-phase four-wire AC380V
- Output voltage and current
+ Three-phase AC100V output (fixed value): 1 group
+ Three-phase AC 0~10A output (<100V, adjustable value): 1 group
+ AC voltage output AC 0～400V, 220V, current <10A: 1 group
+ DC operating voltage output DC 0～260V: 1 group
+ Single-phase AC220V output (fixed value, socket): 2 groups
+ Three-phase AC380V output (fixed value, terminal): 1 group
+ Single phase fixed DC voltage 24V, 36V, 110V, 220V output: 1 group
- Dimension: 550×750×800mm3
- Weight: 75kg
Accessories
- Host
- Test wire
- Manual, Report, Certificate
