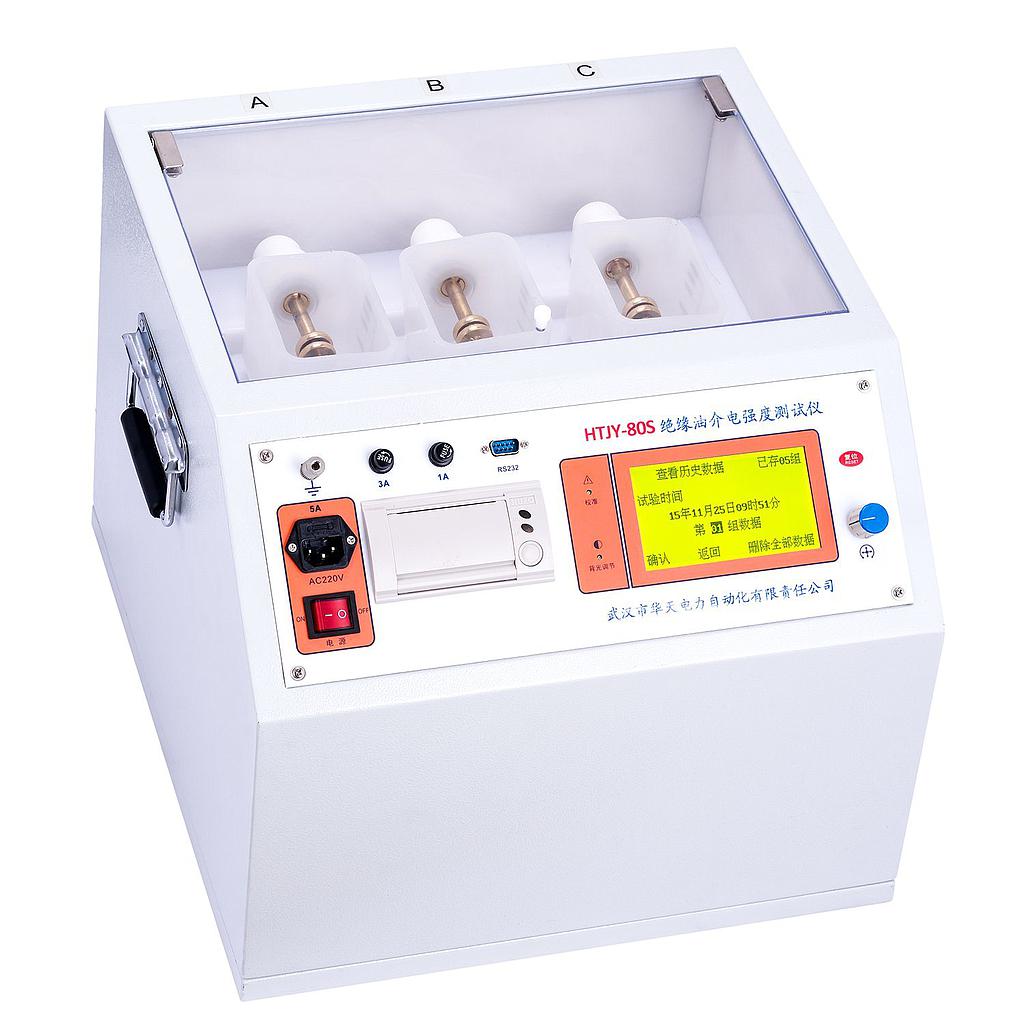

Wuhan HTJY-80S Automatic Insulating Oil Dielectric Strength Tester (Three Cups)

- Input voltage: AC 220V±10%
- Output voltage: AC 0～80KV
- A cup, B cup, C cup: Can be arbitrarily chosen and combined
- Voltage boosting speed: 2KV/s±10%
- Accuracy degree: 3
- Number of times of continuous test: 1～6
- Stirring time: 0～99 seconds
- Standing time: 0-9 minutes 59 seconds
- Storage capacity: 50 groups data
- Voltage limit setting: 20KV～70KV
- Voltage withstand time: 0～10 minutes
- Temperature: 5～40℃
- Humidity: ≤80%RH
- Dimension: 420×380×410mm3
- Weight: 28kg
Accessories
- Host
- CD
- Magnon
- RS232 Cable
- Oil cup
- Accessory bag
- Fuse
- Power Cord
- Deicated Ground Wire
- Manual, Report, Certificate
