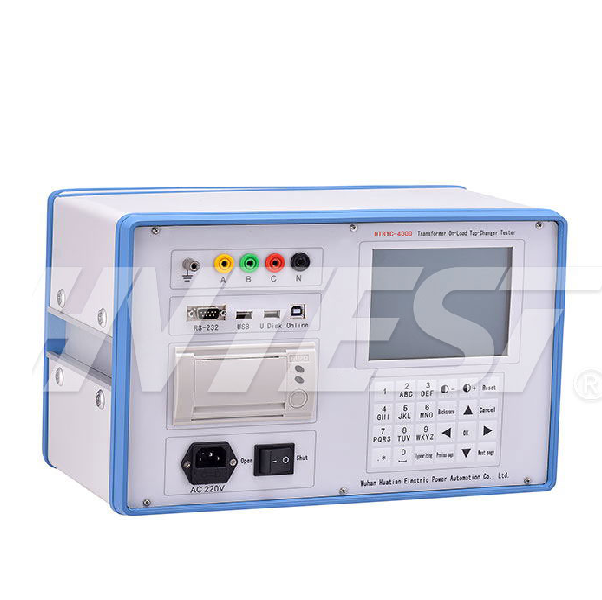

Wuhan HTBYC-4000 Transformer On-Load Tap-Changer Tester (0.5Ω~20Ω, ≤250ms)

Output current: ≥1A, 3 channel

Data sampling: sampling channel: 6 channel

sampling frequency: 10kHz/s

Measuring range: transition resistance: 0.5Ω~20Ω

transition time: ≤250ms

Resolution: resistance: 0.01Ω

time: 0.1ms

Measurement precision: transition resistance: ±(5%+3 digital)

transition time: ±(0.1%+1 digital)

Storage model: U disk storage, machine storage 1G

Dimensions: 350mm×230mm×200mm

Hostweight: 5kg

Conditions of Use

Environment temperature: -10℃~50℃

Environment humidity: ≤85%RH

Working power supply: AC220V±10%

Power supply frequency: 50±1Hz
