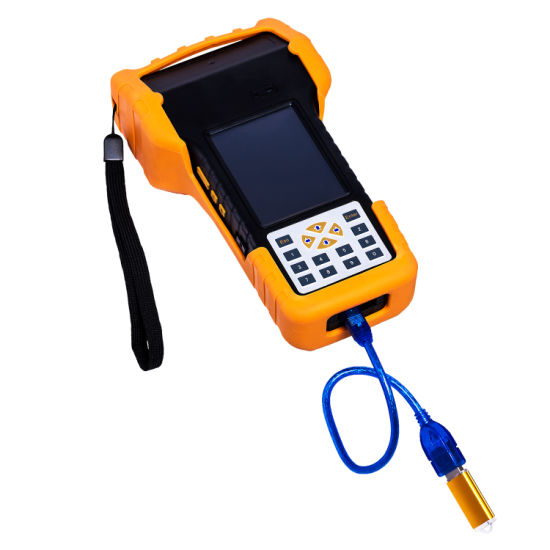

Wuhan HTBNZ-V Battery Tester (0.00mΩ ~ 100mΩ; 0.000V ~220V)

- Resistance range: 0.00mΩ ~ 100mΩ
- Voltage range: 0.000V ~220V
- Minimum test resolution
+ Resistance: 0.1mΩ
+ Voltage: 1mv
- Test accuracy
+ Resistance: ±1.0%rdg ±6dgt
+ Voltage: ±0.2%rdg ±6dgt
- Power supply: Li-ion battery
- Working time: 5-6 hours
- Measuring data memory: 3000 cells
- Operation environment: 0℃ to 40℃; 90% R.H
- LCD display: 320*240pixel TFT touch screen
- Dimension(main unit): L190*W100*H30 mm
- Net weight: 0.5 kg
- Com port: Mini USB
Accessories
- Host
- Charger
- Test Clamp
- USB Wire
- U disk
- Manual, Report, Certificate

Datasheet
