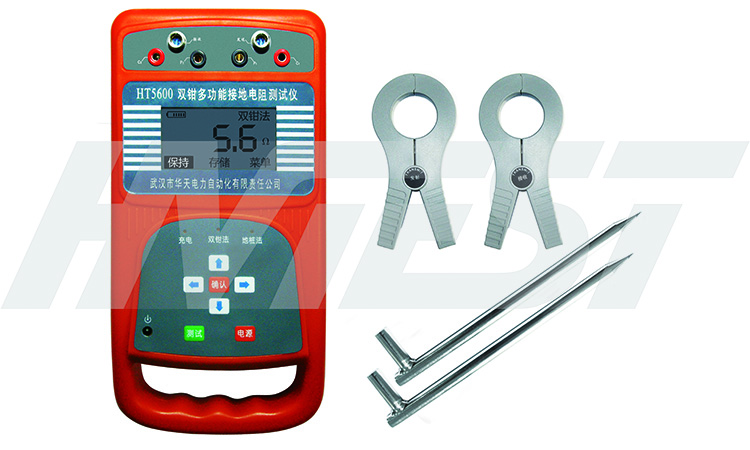

Wuhan HT5600 Earth Resistance Tester (0.01Ω～200Ω)

- Measurement range
+ Double clamp method: 0.01Ω～200Ω
+ Ground piles method: 0.01Ω～200Ω
- Error
+ Double clamp method: ±3%±2 digits
+ Ground piles method: ±2%±2 digits
- Minimum resolution: 0.01Ω
- Jaw size: Φ50mm
- Storage capacity: 200 groups
- Temperature: 0℃～+50℃
- Power supply: 8 AA NiMH rechargeable batteries or regular AA batteries
- Weight: 0.8KG (battery included)
- Dimension: 265×130×65mm3
Accessories
- Host
- Instruction Case
- Test Leads
- Test Clamp
- Bobbin Bracket
- Charger
- Ground Anchor
- Manual, Report, Certificate

Datasheet
