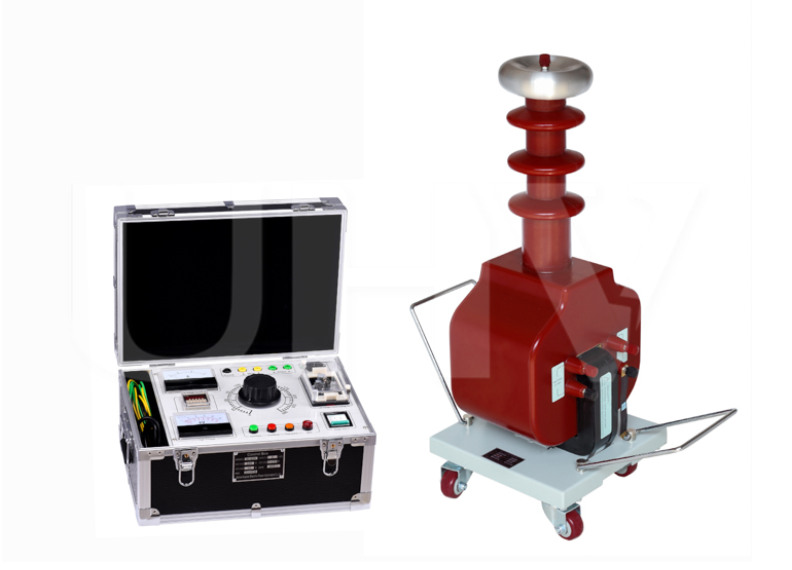

Wuhan GTBZ-5/100 + XC-5/220 AC/DC Hipot Test Set (Dry Type) (5kVA, 100kV AC/140kV DC)
ManufacturerWuhan(View more products from this manufacturer)
ModelGTBZ-5/100 + XC-5/220
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
GTBZ-5/100 test set:
Impedance voltage: ≤12%
Output voltage waveform: DC, AC (rotation
sine dimension)
Surface temperature rise: <55 °C
No-load current: <4%
Output current:
AC: 0 - 50mA
DC: 0 - 38mA
Input voltage from Control Box: 200V
Test output voltage: AC 100KV, DC 140KV
Capacity: 5kVA
Weight: 60 Kg
Dimensions (mm): 360x350x1000
Control box XC-5/220:
Power voltage: 220V AC (1 phase), 50Hz
Output: 0-220V, 25A
Temperature: 0~40℃
Altitude: < 2000m
Relative humidity: < 85%
Operating mode: Manual
Weight: 18 Kg
