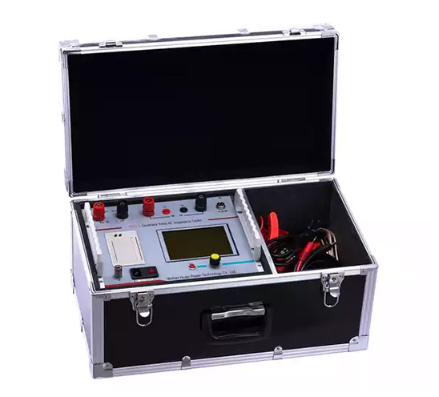

Wrindu RDZZ-605 Generator Rotor AC Impedance Tester (0～999,9Ω)

AC impedance: 0～999.9Ω, level 0.5

AC voltage: 0～600V, level 0.5

AC current: 0～120A, level 0.5

Active power: 0～72KW, level 1.0

Frequency: 45～75Hz,level 0.2

Working power supply: 220VAC, 50Hz

Product Characteristics

1. Measure the rotor AC impedance and characteristic curves of various synchronous generators and asynchronous motor windings in static state.

2. Automatic measuring mode and manual measuring mode can be chosen from.

3. Large screen menu interface; real-time display of test data and curves.

4. With data storage and micro printer to print real-time test data and characteristic curves.

5. Automatically adjust the protection action value according to the test parameters to ensure the safety of the equipment.
