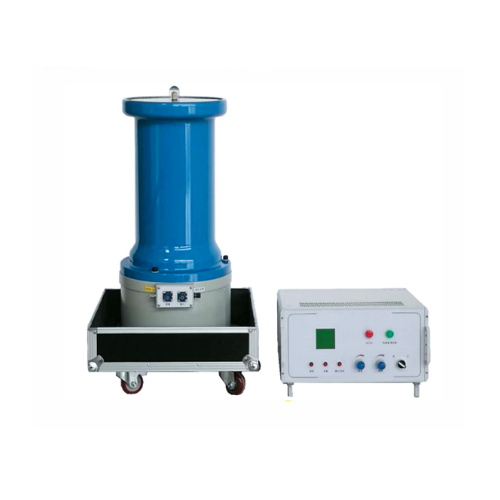

Wrindu RDZGS-80/300 Water Cooled Generator DC Withstand Voltage Tester (80kV,300 mA)

Output voltage: 80 kV

Output current: 300 mA

Output power: 24000 W

Voltage measurement error: 1.0% ± in 2 words

Current measurement error: 1.0% ± in 2 words

Overpressure and rectification error: ≤1.0%

Ripple factor: ≤3%.0

Voltage stability: ≤1.0%

Power supply: AC380V (3-phase, 4-wire line)

Product features:

1. It with various interference current compensation circuit test can completely eliminate the interference of stray current and the polarization potential of the sink pipe.

2. It adopts medium frequency double voltage circuit.

3. It adopts the latest PWM pulse width modulation technology and high-power IGBT devices.

4. According to the theory of electromagnetic compatibility, special shielding, isolation and grounding measures are adopted.

5.High quality, portable, and can withstand the rated voltage discharge without damage
