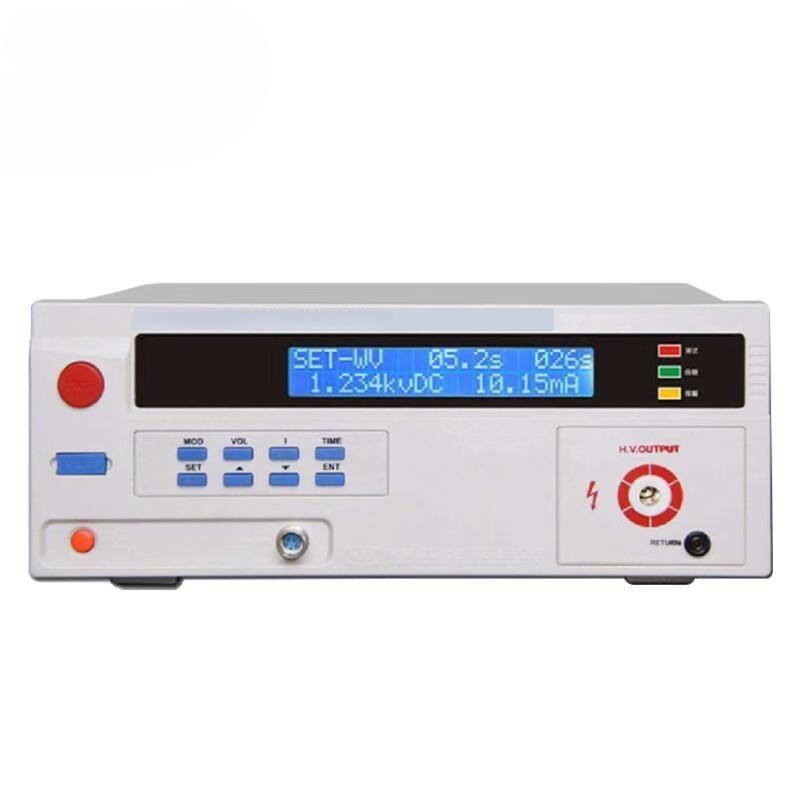

Wrindu RDZ5261 Dielectric Withstand Voltage Tester (Output power: AC 100VA , DC 60VA)

1. Test output voltage:

AC: 0 ~ 5.00 kV ( can be set); Accuracy: ± 3% ± 3 dgt @ 0.5 ~ 5.00 kV

DC: 0 ~ 6.00 kV (can be set); Accuracy: ± 3% ± 3 dgt @ 0.5 ~ 6.00 kV

2.Test output current:

AC: 0 ~ 20 mA (can be set); Accuracy: ± 3% ± 3 dgt @ 0.2 ~ 20 mA

DC: 0 ~ 10 mA (can be set); Accuracy: ± 3% ± 3 dgt @ 0.2 ~ 10 mA

3. Timing: 1～999 s (can be set); Accuracy: ± 3% ± 1 second

4. Output power: AC 100VA , DC 60VA

5. Power supply: AC220V ± 10 % , 50Hz/60Hz

6. Safety protection functions: a. Short circuit shutdown and alarm. b. Out of tolerance alarm.

7. Memory function: The tester can save commonly used withstand voltage modes.

8. Interface: RS232, PLC
