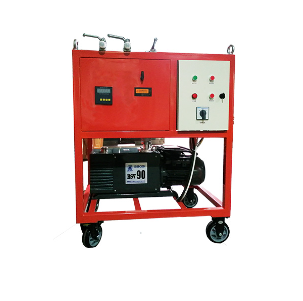

Wrindu RDQC-150 SF6 Vacuum Pumping and Charging Device

Vacuum pump *: Front pump 25L/S, roots pump rated constant speed 150L/S, final vacuum degree < 0.06Pa

The Conduit

Globe valve: 316. GU vacuum ball valve

Connection slot: DN8 type, used to connect SF6 gas recharging device

The Conduit

Globe valve: 316. GU vacuum ball valve

Vacuum meter: Electronic vacuum gauge

Globe valve316. GU vacuum ball valve

Connector

Hose: Length 5m/3m, hydrophobic material composition

Connection plug-in: Various types of electrical equipment interface

Working voltage: AC 380V, 50Hz

Noise level: < 78dB

Product characteristics:

1.   Electronic vacuum gauge;

2.   Equipped with all kinds of imported and domestic SF6 Electrical equipment connection joints;

3.   A variety of protection functions, effectively ensure the safe operation of the vacuum pump;

4.   The SF6 Vacuum Pumping and Charging Device is easy to maintain. All the devices are made of high performance components, which can be used for a long time without maintenance.

Basic configuration of device:
