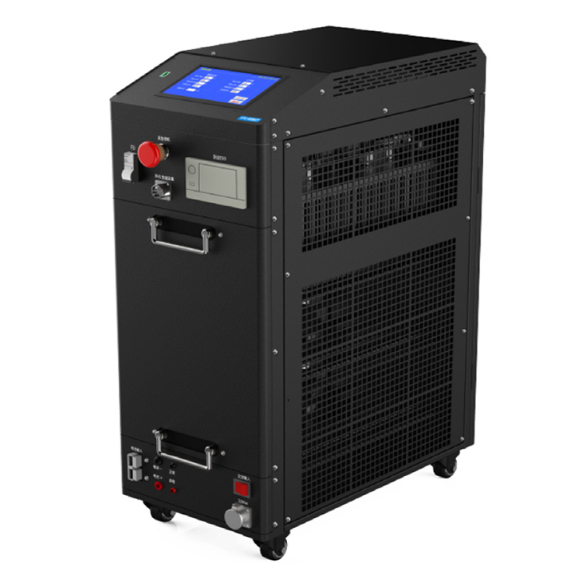

Wrindu RDLI-8006CT High Voltage Lithium Battery Discharger (Max Discharge Power: 36 kW)

Discharge Voltage Range: 200-800V

Accuracy & Resolution: 0.1V; ±0.5%FS, max 800V

Discharge Current Range:

- 200-300V: 0-30A; 300-400V: 0-45A; 400-600V: 0-60A;

- 600-800V: limit power to 36kW, voltage rise current reduced to 45A-60A

Accuracy & Resolution: 0.1A; ±1%FS, max 60A

Max Discharge Power: 36 kW

Discharge Mode: constant current discharge, constant power discharge

Battery Port: 7 pin

Display: 7 inch touch screen

PC Data Communication: TCP/IP, USB

Dimension: 293*506*773 mm

Weight : 45 kg
