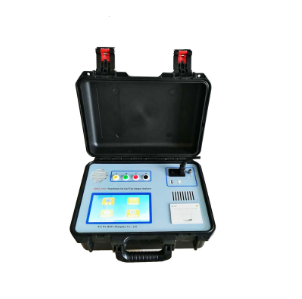

Wrindu RDKC-2000 Transformer On-load Tap-changer Analyzer (0.3Ω~100Ω)

Output current: 1.0A, 0.5A, 0.2A

Measuring range:

Transition resistance: 0.3Ω~20Ω(1.0A) 5Ω~40Ω(0.5A) 20Ω~100Ω(0.2A)

Transition time: 0 ~ 320ms

Open circuit voltage: 24V

Measurement accuracy:

Transition resistance: ± (5% reading ± 0.1Ω)

Transition time: ± (0.1% reading ± 0.2ms)

Sampling rate : 20kHz

Ambient temperature: -10 ℃ ~ 50 ℃

Ambient humidity: ≤ 85% RH

Power supply: AC220V±10%，50 ± 1Hz

Product features:

1. Large output current, light weight;

2. Test YN, Y, △type transformer, the resistance unnecessary to be converted but directly display;

3. Both with winding and without winding can be measured

4. Waveform display automatically adjusts the resistance according to the sampled value, the time value amplitude

5. With perfect protection circuit, reliability and strong;

6. 7-inch large LCD display, easy on-site operation;

7. Built-in high-capacity lithium battery;

8. 500 sets of data can be saved in Internal automatically, can connect with U Disk.
