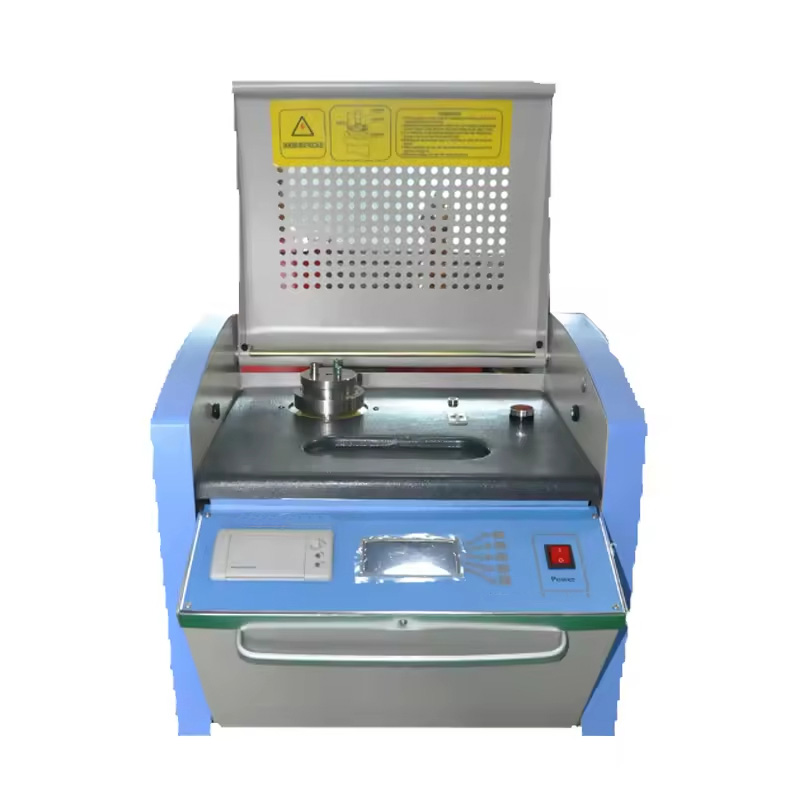

Wrindu RDJS-610J Insulating Oil Dielectric Dissipation Factor Tester (Measurement range: capacitance 5pf ~ 200pf)

1. Power supply voltage: AC 220 V ± 10%

2. Power frequency: 50 Hz / 60 Hz ± 1%

3. Measurement range: capacitance 5pf ~ 200pf

The relative permittivity is 1.000-30.000

The dielectric loss factor is 0.00001 ～ 100

DC resistivity 2.5 m Ω m ~ 20 t Ω M

4. Measurement accuracy: capacitance ± (1% reading + 0.5pf)

Relative permittivity ± 1% reading

Dielectric loss factor ± (1% reading + 0.0001)

DC resistivity ± 10% reading

5. Resolution: capacitance 0.01pf

Relative permittivity 0.001

Dielectric loss factor 0.00001

6. Temperature range: 0 ~ 125 ℃

7. Temperature measurement error: ± 0.5 ℃

8. AC test voltage: 500-2000 V, continuously adjustable, frequency: 50 Hz

9. DC test voltage: 0 ~ 500V, continuously adjustable

10. Power consumption: 100W
