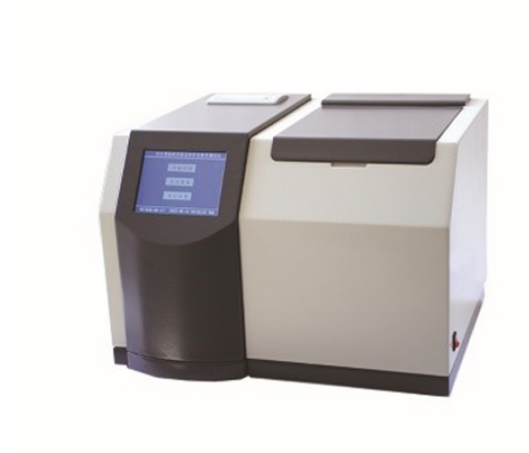

Wrindu RDJS-610D Insulating Oil Dielectric Loss Tester (5pF ~ 200pF)

Power supply voltage: AC 220 V ± 10%

Power frequency: 50 Hz / 60 Hz ± 1%

Measurement range:

- Capacitance is 5pF ~ 200pF

- The relative permittivity is 1.000 ~ 30.000

- The dielectric loss factor is 0.00001 ~ 100

- DC resistivity 2.5 M Ω m ~ 20 T Ω M

Measurement accuracy:

- Relative permittivity ±(1 ~ 10)% reading

- Dielectric loss factor ± (5% reading + 0.0002)

- DC resistivity ± 10% reading

Resolution

- Capacitance 0.01pF

- Relative permittivity 0.001

- Dielectric loss factor 0.00001

Temperature range: 40 ~ 120 ℃

Temperature measurement error: ± 0.5 ℃

AC test voltage: 200-2200 V, Continuously adjustable, Frequency 50 Hz

DC test voltage: 0 ~ 500V, Continuously adjustable

Power consumption: 500W
