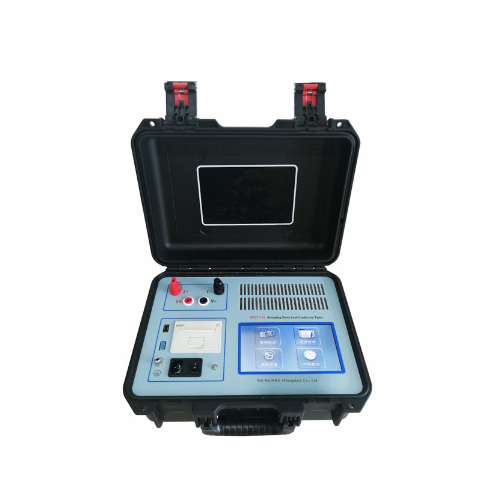

Wrindu RDDT-10A Grounding Down Lead Conduction Tester (10mΩ-10Ω)

Test current: AUTO、1A、3A、5A、10A

Measuring range: 0.8mΩ-0.8Ω (10A)

1mΩ-2Ω (5A)

5mΩ-3Ω (3A)

10mΩ-10Ω (1A)

Minimum resolution: 0.1μΩ

Accuracy: ±(0.5%±2个digits)

Display: LCD display, resistance display, 4 significant digits

Data storage: 1000 groups

Working environment: Ambient temperature:0℃～40℃ Relative humidity <90%RH，no condensation

Power supply: Built in lithium battery AC 220V±10V，50Hz±1 Hz，fuse 2A

Maximum power consumption: 100W

Product features:

1. Our Earth Network Grounding Resistance Tester Uses high-performance single chip microcomputer control, which makes the test process intelligent.

2. Small size, easy to carry and operate.

3. The Leakage Current Earth Ground Testers has the characteristics of high precision, fast testing speed, good repeatability and intuitive reading.
