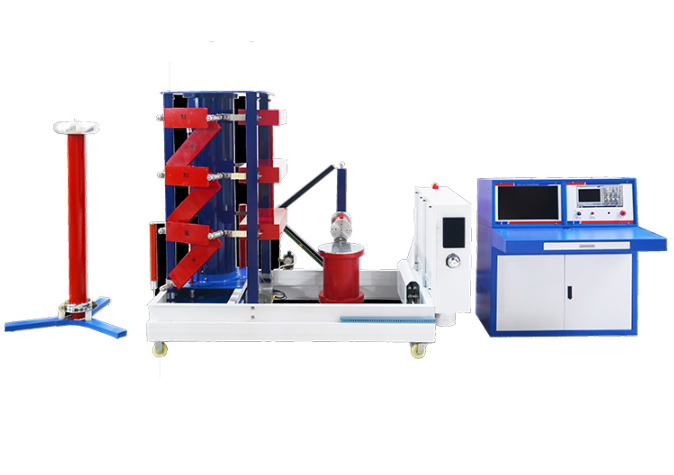

Wrindu RDCJ-DY Impulse Voltage Generator (100~10000kV)

Name: Wrindu RDCJ-DY Impulse Voltage Generator (100~10000kV)
Brand: Wrindu

ModelRDCJ-DY

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Items: 1,1.2/50µs 2,250/2500µs 3,2~5µs etc waveforms

Output Peak Value: 100~10000kV

T1 Wave Front Time: 1.2µs±30%

T2 Wave Tail Time: 50µs±20%

Reverse Overshoot: <20%

Voltage Polarity: Positive/negative(manual shifting)

Waveform Shift: Auto shifting

Charging Time: 10s~999s, set arbitrarily

Instability of charging voltage: <1%

External Input: 50Hz/60Hz

Trigger Method: Auto or manual, can single trigger

Trigger Maloperation rate: <1%

Trigger Range: 100% rated charging voltage

Display Screen: 17-inch TFT color screen

Measurement Display Precision: Better than 3%

Tested Product Residual Voltage: <5kV

Voltage Measurement: Use damped impulse divider

Oscilloscope: TBS series, optional

Insulation Strength: ≤500V RMS (common to ground refer PE)

General Parameters

Power Source: AC220V±10%, 50/60Hz

Environment Temperature: -10±40ºC

Relative Humidity: 35%-85% RH (no condensation)

Ground Resistance: ≤0.5Ω

Structure Type: Open structure, independent control cabinet and main body, optical fiber connection

Control Console: 1.8M(length)*1.2M(height)*1M(width)

No conductive dust, no fire and explosion hazards, no corrosive metal and insulation gas, waveform of power voltage is sine wave, distortion <5%

Datasheet

Equipment model selection parameters
Nominal Total Voltage kV	Class	Impulse Capacitance (μF)	Impulse Level Capacitance(μF)	Total Charging Power(kJ)	Application
±300~±900	3~9	0.133~0.111	0.4~1	6~45	35~110kV
±1000~±1600	10~16	0.05~0.0937	0.5~1.5	25~120	<220kV
±1800~±2400	9~12	0.056~0.0833	0.5~1	90~240	220kV~500kV
±2800~±3200	14~16	0.0357~0.0625	0.5~1.5	140~320
±3600~±4800	18~24	0.0278~0.03125	0.5~2	80~240
Minimum time difference between pulse		30s		40s
Generator capacity per level		≤1600kV use 100kV single side charging 1		≥1600kV use 100kV double sides charging
