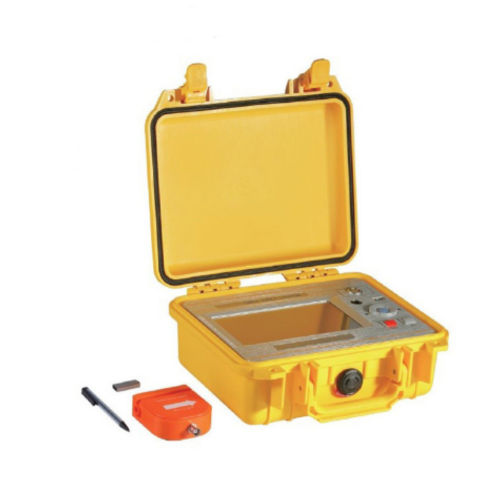

Wrindu RDCD-750 Cable Fault Locator (20m-100km)

Measuring range: 200m-100km, 20m-100km can be selected

Resolving power: 0.2m

Sampling rate: 400Mhz

Display: 7-inch LED display

Interface: USB

Output impedance: 33 Ω

Power Supply: 220V / 50HZ

Functional features:

Multi range positioning method:

Small current impulse method is suitable for small resistance fault location; impulse current method is suitable for high resistance fault and breakdown fault; multi pulse method is suitable for small resistance fault location

400MHz real time sampling

Touch screen and key operation

Large screen color LED, friendly interface

7-inch LED display, 160 ° viewing angle, 750cd / m2 bright in the sun

Waveform storage and PC communication

Special software management is used for software upgrade, backup and recovery in the device. It supports connection with PC or laptop and internal storage of waveform.

Power management

If it doesn't work within 2 minutes, the backlight will be weakened, and if it doesn't work within 10 minutes, the power will be cut off. Built in polymer lithium-ion battery, working time can reach 7 hours each time.
