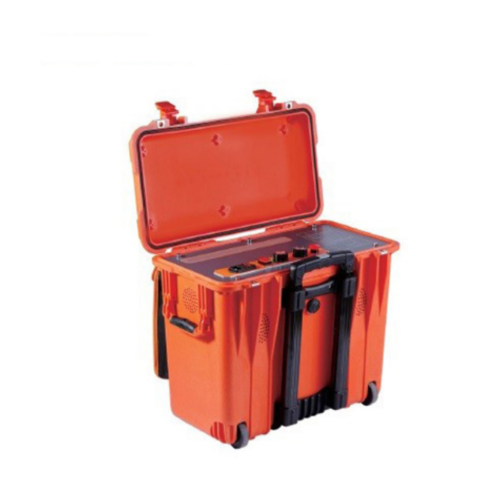

Wrindu RDCD-650 Cable Test High Voltage Signal Generator (0～35kV)

Output voltage: 0～35kV

Energy storage capacitor: 4μF

Maximum energy storage: 2000J

Maximum DC output current: Maximum 50mA (due to high energy, large current is generally not required)

Discharge period: 5S ± 10% (periodic discharge mode)

Power Supply: AC220V，50Hz

Input power: <1500W

Functional features:

Integrated design, compact structure, small size, light weight.

Multiple seed models are available for different test requirements.

Imported safety box structure, beautiful appearance, easy to move.

The energy storage capacitor is built in, without high voltage exposure, safe and reliable.

The high voltage output is directly connected to the fault cable, so the operation is safe and the wiring is simple.

Built in high-power switching power supply, capacitor charging fast, short discharge cycle, fast fault point.

Multiple safety protection, high voltage zero start, automatically release high voltage capacitor energy storage after power failure.

With single, cycle and DC three working modes, to adapt to a variety of fault testing requirements.

The output voltage is adjustable, the LED display response speed is fast, and the capacitor discharge state is clear at a glance.
