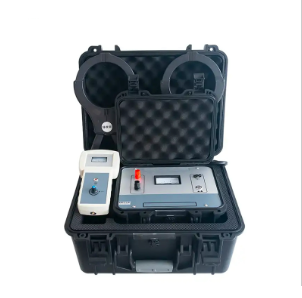

Wrindu RDCD-505A Cable Fault Identifier

1. Pulse output: 0-5A/600V

2. Pulse frequency 512, 1500, 3300, 15000Hz

3. Output gear: automatic impedance matching

4. Display: 7-inch true color LCD screen

5. Power supply: built-in battery

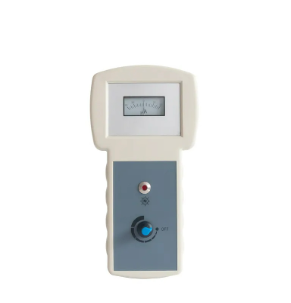

Receiver:

1. Test jaws: φ200mm flexible

2. Judgment method: amplitude polarity double judgment (phase angle is optional)

3. Voltage measurement :0. 01-600V±2% + 3 digits

4. Current measurement: 0. 01-5000A ±2% + 3 digits

5. Frequency measurement: 40-70Hz±2% + 3 digits

6. Working power: 9V battery

The variable frequency pulse power supply is adopted, and the principle of electromagnetic induction is used to accurately identify the stopped or running cable. It has the function of measuring voltage, current, and frequency.
