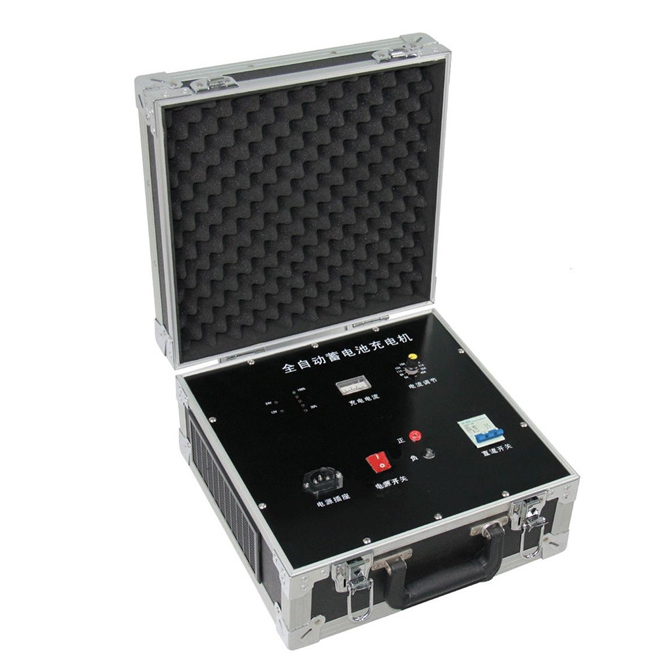

Wrindu RDBT-8607 Battery Charging Instrument (Battery capacity: 20Ah～200Ah)

1. AC input voltage: AC(180～264)V, frequency: 50Hz±10%

2. Constant current charging current setting range: 2～40A

3. Battery type: lead acid battery

4. Battery capacity: 20Ah～200Ah

5. Battery nominal voltage: 216V

6. Floating charge voltage: 243V

7. Average charging voltage: 243～280V(factory set 270V)

8. Charging constant current value: 2～40A（factory set 20A）

9. Total precision of voltage stabilization: 1％；total precision of current stabilization: 1％

10. Efficiency: ≥92％

11. Power factor: ≥0.85

12. Insulation strength: input to shell and output to shell ≥AC1500V; output to shell≥AC500V

13. Mean time between failures (MTBF): ≥50000h

14. Thermal shutdown temperature threshold: (80～85)℃
