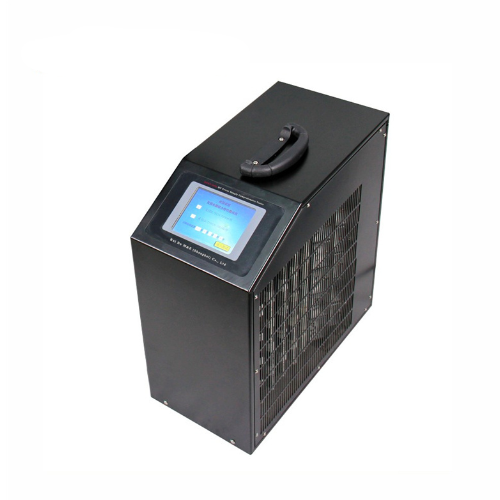

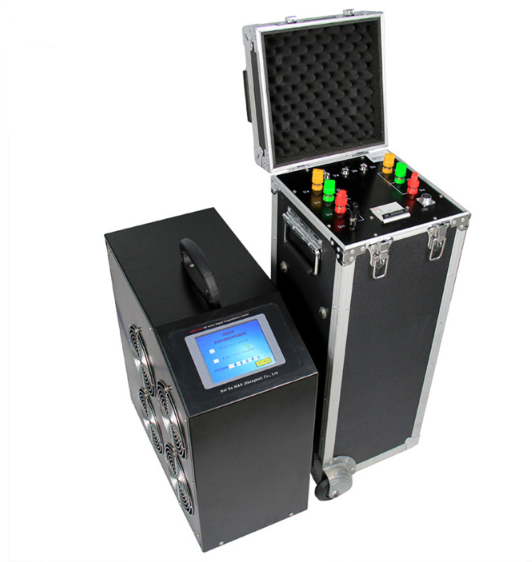

Wrindu RDBT-8602 DC Power Supply Comprehensive Tester (-20°C ～ 55°C)

1. Working power supply: AC 220 V ± 15%, frequency 50 Hz

2. Power consumption: no more than 50W

3. Ambient temperature: -20℃ ～ +55℃

4. Rated power of three-phase voltage regulator: 15kVA, rated current: 50A

5. Voltage measurement accuracy: ≤0.2%

6. Current measurement accuracy: ≤0.5%

7. Tester size: 500×360×420(mm); weight: 15kg

8. Size of three-phase voltage regulator: 260×350×600(mm); weight: 18kg

9. Applicable voltage grade: 110V and 220V

10. Data record: the memory is greater than 256M

11. Interface mode: USB and RS232 are provided at the same time

12. Working hours: continuous

Product features:

1. Full automatic test, the DC power supply comprehensive tester completes various test functions according to the menu mode

2. The host system uses a new high-speed industrial PC as processor and large-scale integrated circuit (CPLD), with high reliability and excellent performance

3. With large screen graphic LCD, 5.6-inch color screen and graphic interface, it is easy to operate and easy to use

4. The three-phase automatic numerical control voltage regulator has high output precision, high power and high voltage stability

5. The new high power consumption device is used as the load, which has strong load capacity, high precision, small volume, light weight and no open fire

6. The load resistance is arranged in 8421 code order, which can be arbitrarily combined into the load required by users

7. In the process of discharge, the discharge current remains unchanged

8. DC Power Analyzer only use three keys to complete the setting, input numbers directly, print on site, and have RS232 and USB interface

9. Perfect upper computer function, with the functions of analysis, data storage, comparison and fault determination
