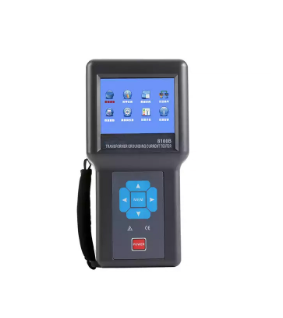

Wrindu RD8100B Transformer Core Grounding Current Tester (AC 0.00mA～100A)

Power supply: DC 9V alkaline dry battery LR6 1.5V×6

Test mode: Clamp CT

Jaw size: 80mm×80mm (It can clamp Φ 80mm conductor or 96mm × 4mm Flat steel ground wire)

Current range: AC 0.00mA～100A

Resolution:

AC 0.00mA～9.99mA, resolution：0.01mA；

AC 10.0mA～99.9mA, resolution：0.1mA；

AC 100mA～999mA, resolution：1mA；

AC 1.0A～100.0A, resolution：0.1A；

Accuracy:

±（0.5%rdg+5dgt）

23°C±3°C, below 70% RH, the wire is in the center of the jaw.

Frequency range: 10HZ～1000HZ

Sampling rate: 1/S

Line voltage: Circuit test under AC 600V

Suitable for safety regulation: IEC1010-1, IEC1010-2-032, pollution level 2, CAT Ⅲ 600V, I EC61326(EMC standard)

Product features:

The meter can store 200 groups of data, and the stored data can be imported into the computer through USB interface

Waveform indication, alarm value setting and alarm indication

Historical data reading, consulting, saving, printing and other functions
