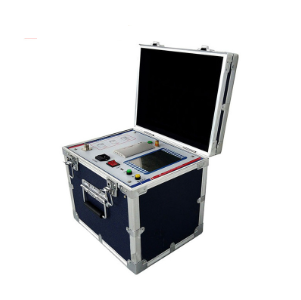

Wrindu RD6000 Anti Interference Dielectric Loss Automatic Tester (45HZ/55HZ 55HZ/65HZ 47,5HZ/52,5H)

Service condition: -15℃∽40℃, RH＜80%

Anti-interference principle: Frequency conversion method

Power supply: AC 220V±10%, Generator allowed

High voltage output:

- 0.5KV∽10KV, every 0.1kV

- Accuracy:2%

Maximum current: 200mA

Capacity: 1500VA

Auto-exciting power supply: AC0V∽50V/15A, 45HZ/55HZ 55HZ/65HZ 47.5HZ/52.5HZ

Resolution:

- tgδ: 0.001%

- Cx: 0.001pF

Accuracy:

- △tgδ:±(reading*1.0%+0.040%)

- △C x :±(reading*1.0%+1.00PF)

Measurement range:

- tgδ: Unlimited

- C x: 15pF ＜ Cx ＜ 300nF

- 10KV: Cx ＜ 40 nF

- 5KV: Cx ＜ 150 nF

- 1KV: Cx ＜ 300 nF

- CVTtest: Cx ＜ 300 nF

Memory storage: 200 groups, support u disk data storage

Product features:

1. Full touch large LCD

It is easy to operate. The capacitance and tan delta test kit is equipped with high-end full touch LCD and super large full graphic operation interface. Every process is clear, and the operator can use it without additional professional training. It is an ideal intelligent measuring equipment at present.

2. Massive data storage

The  Capacitance Dielectric Loss & Dissipation Factor Tester is equipped with a calendar chip and a large capacity memory, which can save the test results in chronological order, view the historical records at any time, and print them out. The instrument is equipped with a calendar chip and a large capacity memory, which can save the test results in chronological order, view the historical records at any time, and print them out

3. Massive data storage

The data can be exported through U disk, and can be viewed and managed on any PC through our company's special software.

4. Multiple test modes

The Transformer Capacitance & Tan Delta Test Equipment can be tested by direct connection method, reverse connection method, CVT self-excitation method, etc.

5. Measure CVT without removing high voltage lead

The Anti Interference Transformer Tan Delta Dielectric Loss Tester can correctly measure the dielectric loss and capacitance of CVT without removing the high voltage lead of CV.

6. CVT reverse shielding method for measuring C0

The Capatitance and Tan Delta Tester can measure the dielectric loss and capacitance of C0 at the upper end of CVT by reverse shielding method.

7. High speed sampling signal

The inverter and sampling circuit inside the instrument are all digitally controlled, and the output voltage is continuously adjustable.

8. Multiple protection, safe and reliable

The Capatitance and Tan Delta Tester has multiple protection measures such as input voltage fluctuation, output short circuit, over-voltage, over-current and temperature to ensure the safety and reliability of the instrument. The instrument also has grounding detection function to ensure that ungrounded equipment is not allowed to boost voltage.
