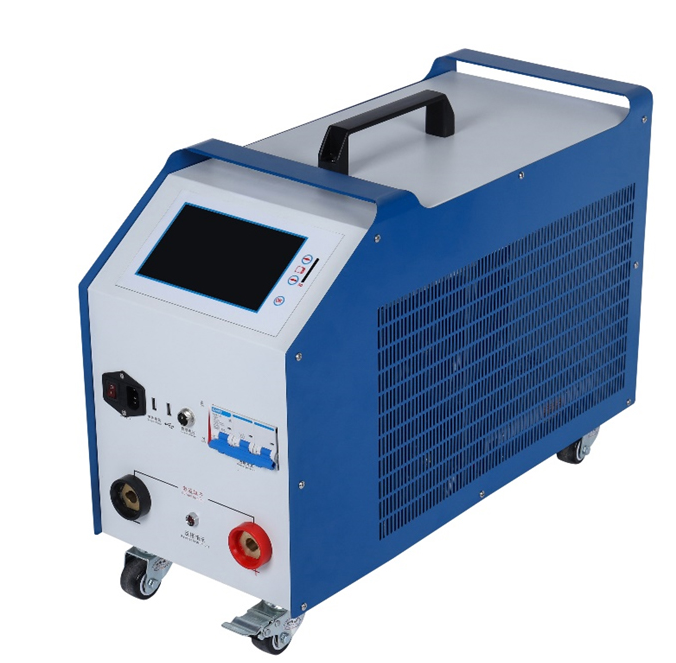

Wrindu RD-8700CT All in one Battery Load Bank (DC 10V-450V)

DC voltage measurement

Rated total voltages:

10-30V; 50A

30V-60V; 150A

60V-150V; 100A

150V-300V; 50A

300V-450V; 50A

Discharge voltage ranges: DC 10V-450V

Accuracy & resolution: ±0.3% FS +0.3V; 0.1 V

DC voltage measurement

Internal current range: Max.150A at 1-150A adjustable

Accuracy & resolution: ±0.5% FS +0.6A; 0.1 A

Cell voltage type:1.2V/2V/4V/6V/12V

Accuracy & resolution: ≤ ± 0.5%; 0.01 V

Power supply

Power supply: AC 110/220V (-20% to +20%), 50Hz/60Hz

Cooling mode: Forced air cooling

Communication & storage

Storage mode: USB Internal storage

Internal memory: 16MB flash or optional

Display: 7inch touch screen

High-voltage insulation test:

Input-The enclosure: 2200Vdc 1min

Input-Output: 2200Vdc 1min

Output- The enclosure: 700Vdc 1min

Safety standard: EN610950

Environment

Work temperature: -5～50℃

Storage temperature: -40～70℃

Humidity : 5%～95% RH

Altitude: Below 4000 m

Working noise : <60dB

Dimensions of host machine: 355x230x440mm

Dimensions of package: 480x250x410mm

Net weight: <50kg
