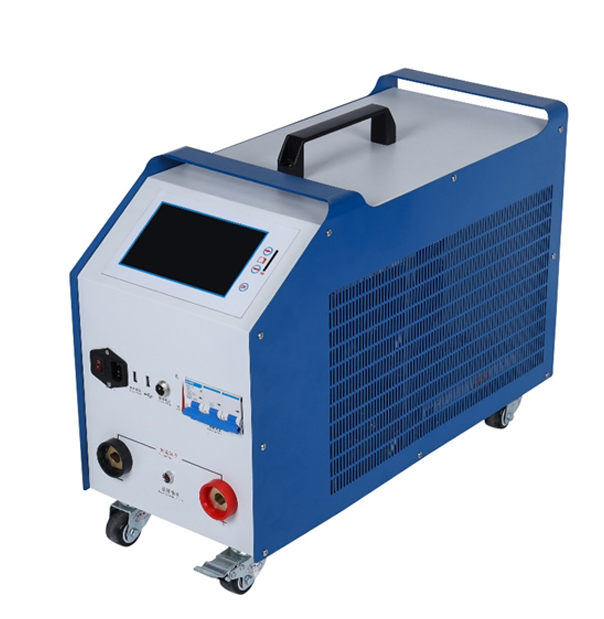

Wrindu RD-8400CT All in one Battery Load Bank (Rated total voltages: 24V/48V/110V/220V)

DC voltage measurement

Rated total voltages: 24V/48V/110V/220V

Discharge ranges:

10V-30V; 55A

30V-150V; 110A

150V-300V; 55A

Accuracy & resolution: ±0.3% FS +0.3V; 0.1 V

DC voltage measurement

Internal current range: Max 110A at 1-110A adjustable

Accuracy & resolution: ±0.5% FS +0.6A; 0.1 A

Cell voltage type: 1.2V/2V/4V/6V/12V

Accuracy & resolution: ≤ ± 0.5%; 0.01 V

Power supply

Power supply: 220V AC (-20% to +20%) 50Hz/60Hz

Cooling mode: Forced air cooling

Communication & storage

Storage mode: USB internal storage

Internal memory: 16MB flash or optional

Display: 7inch touch screen

HV insulation test:

Input-The enclosure: 2200Vdc 1min

Input-Output: 2200Vdc 1min

Output-The enclosure: 700Vdc 1min

Environment

Work temperature: -5～50℃

Storage temperature: -40～70℃

Humidity : 5%～95% RH

Altitudebelow: 4000 m

Working noise: <60 dB

Dimensions of host machine: 800 x 290 x 540 mm

Dimensions of package : 960 x 530 x 850 mm

Net weight: 50kg
