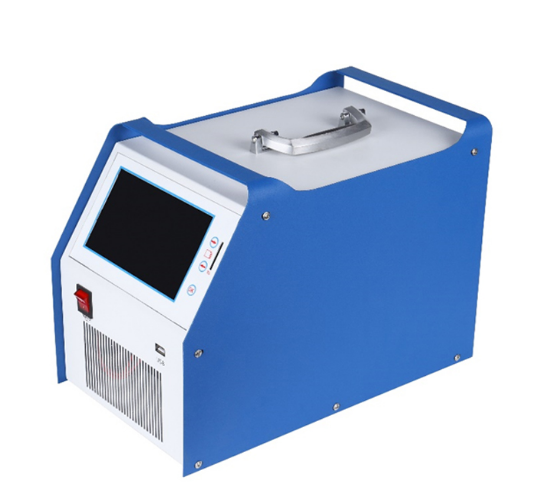

Wrindu FST-IBC2612 Individual Battery Intelligent Regenerator (1.2V/2V/6V/12V)

Cell voltage measurement type: 1.2V/2V/6V/12V

Cell Voltage measurement range:

1.2V/2V: 0～3V

6V: 4～8V

12V: 8～15V

Cell voltage resolution: 1.2V/2V/6V: 0.001V; 12V: 0.01V

Voltage test accuracy: 0.50%

Charge/discharge current range:

1.2V/2V: 2A～100A

6V: 2A～30A

12V: 2A～30A

Charge/discharge current control resolution: 0.1A

Current test resolution: 1%

Battery Capacity check range:

20Ah～1000Ah

6V:20Ah～300Ah

12V:20Ah～300Ah

AC Power supply: AC 220±15%

Communication mode: USB port

Cooling mode: Air Cooling

Work environment : 0℃～50℃; humidity: 5～9%RH

Display: LCD

Dimensions: 280×210×240 mm

Weight: 10 kg

Carrying way: Portable
