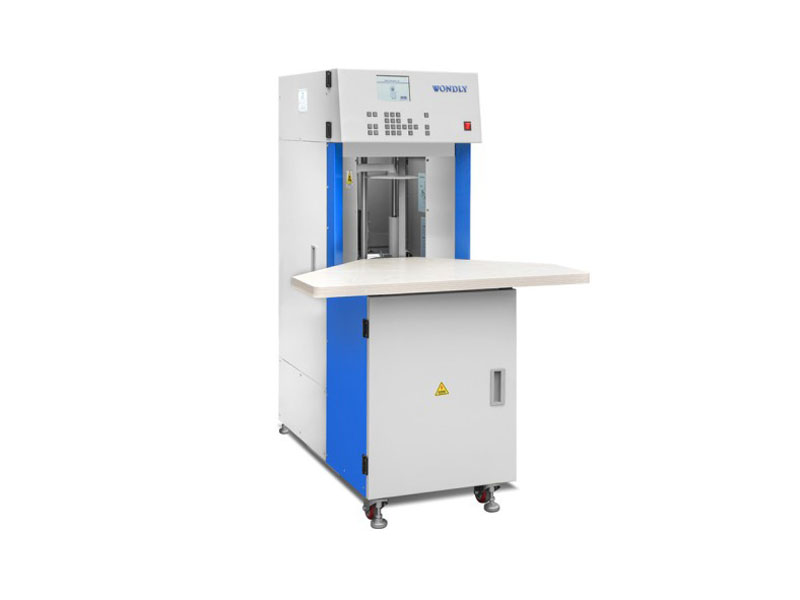

Wondly WDL-1 Paper counting machine (30 ～ 210g/m)

Paper Thickness Range: 30 ~ 210 g/m² (Carbon paper, offset printing paper, coated paper, etc.)

Paper Size: Min. 100 × 150 mm, Max. 546 × 788 mm

Paper Stacking Height: 300 mm (Max)

Power Supply / Voltage: AC220V ±10%, 50Hz

Collecting Table Size: 580 × 900 mm

Collecting Table Height: 760 mm

Machine Size: 900 (W) × 1080 (L) × 1500 (H) mm

Machine Weight: 230 kg

Label for Paper in Pile: Width 6 mm, Length 100 m

Power Consumption: 600 W

The paper counting machine is a high-tech product we committed to develop,with superior performance,it has a 7-inch color screen computer and servo motor control.

Any kind and any thickness of paper can be precise and high-speed counting.Different kinds of paper can be mixed counting simultaneously.

The paper counting machine is rich in features to meet the needs of different users, in addition to the standard paper counting mode, there is the random paper label insert function,which can nark for different quantity of paper;The paper quantity detection function is for the check whether the predetermined number and actual number matches or not;The specified number counting function is for sorting out the required number of paper from the paper-pile

Auto-diagnostic function.The operator can know from a clear error message displays on the platform which shows whether the machine fault is caused by their own operating mistakes, or the machine itself abnormal operating conditions.

It has a paper label fast changing structure
