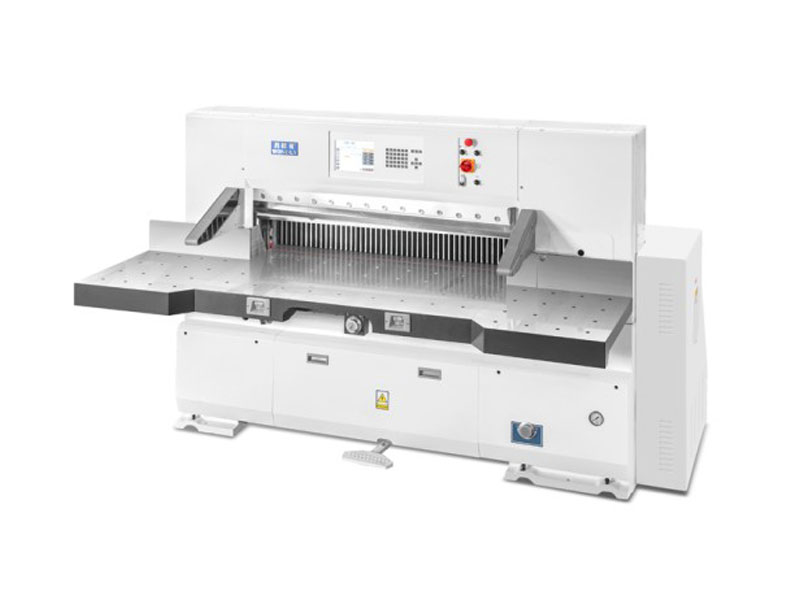

Wondly QZYK1370DF Flat paper Economical Paper Cutter machine (4 kW)

Cutting Width: 137 cm

Cutting Height: 16.5 cm

Cutting Length: 145 cm

Main Motor Power: 4 kW

Weight: 4500 kg

Width with Sideway: 330 cm

Width without Side Table: 270 cm

Machine Length: 277 cm

Table Height: 92 cm

Cutting Speed: 45 times/min

Overall Dimensions: 295 × 145 × 200 cm

Voltage (Three-phase): 361–399 V

Wire Size: 2.5 mm²

Castings using advanced resin sand molding, clear internal structure, Arranging to meet international standards HT250, the growth of sports sites more effective life of the friction.

The Taiwan 10.4 -inch color LCD touch screen display computer interface using user-friendly design, allows the operator to easily operate

Servois used as paper feeding system，and locateon presicion up to ±0.01mm full machine control part of the main low-voltage electrical appliances imported Schneider.

Hydraulic some of the pressure adjustable.

The frame structure of the international popular split, effectively increasing the machine cutting precision, user-friendly maintenance.

Chrome work platform, saving the user's maintenance time, extend its life.

Work platform equipped with inflatable structures to facilitate the pushing of paper and feed.

With a highly reliable protection of the six groups of grating, ensuring operator safety.

Hook-like structure mounted knife, make easy work tool changes.

High-precision, high rigidity box-type paper sector, the wiring of the double-rail to ensure that the paper feed precision.

Worm gear drive mechanism, hydraulic clutch, mechanical brake
