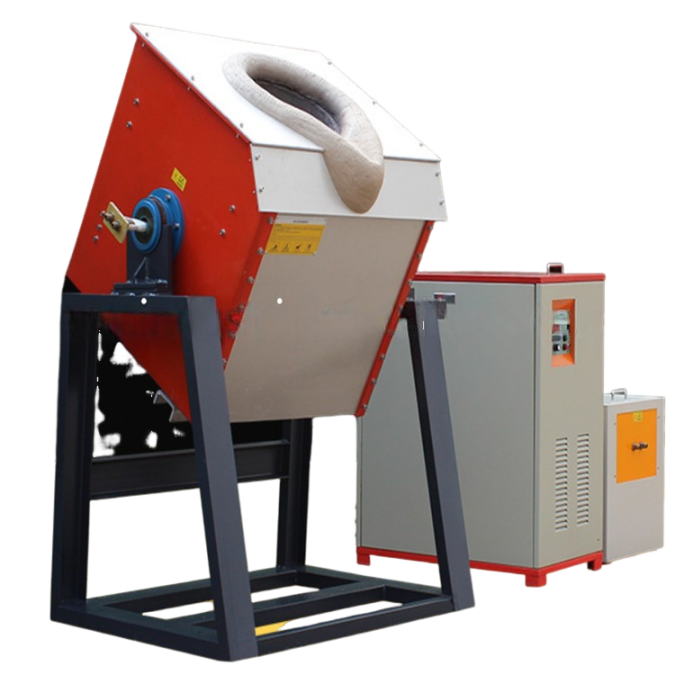

Wondery WDL-ZP-16KW Cast Iron Industrial Induction Furnace Steel Melting Furnace Heater Medium Frequency Type (160 kW; 100 kg)

Energy: Electric Induction

Application: Induction Of Cast Iron

Working Power: 160KW

Input voltage range: 70V-550V

Output oscillation frequency: 1-20KHZ

Output current: 35-290A

Weight:

+ Main machine: 80kg;

+ Control cabinet: 70kg

Dimension:

+ Furnace: 1050*790*1200mm(L*W*H);

+ Power supply: 750*500*960mm(L*W*H);

+ Control cabinet: 550*400*510mm (L*W*H)

Capacity: 100KG cast iron

Crucible Type: Graphite

Max temperature: 2000 Degree Celcius (hearth)

Melting Cycle: 6-10 Mins

Cooling type: Water cooling

Cooling water requirement: ≥0.5Mpa; ≥30L/min

Supply scope:

Heating power source, 1 set;

Foot switch, 1 pc;

Connection wire 2pcs; single wire 1 pc;

Metal melting furnace body 1set; flexible connection cable 2pcs;

User manual 1 copy;

1. Features

The medium frequency induction steel melting furnace has alarm function and fault detection function, such as fault state protection and display including overcurrent, overvoltage and water shortage, etc. The furnace is user friendly since it is very easy in operation. The medium frequency induction steel melting furnace has magnetic mixing function which makes the melting process more unified.

3. Main Features

3.1 The main power devices of the metal induction heater (also called as induction melting furnace) are all German Siemens brands, and the main electronic components are imported products (Motorola (diode), NEC (triode),ST (three terminal voltage regulator), FAIRCHILD, ON etc., which make them work stably and have higher reliability and durability.

3.2 The metal induction heater melting furnace adopts IGBT power device and unique frequency conversion technology to operate stably and provide higher reliability and durability. It has the function of constant current and constant power control, which greatly optimizes the metal heating process, realizes efficient and fast heating, and gives full play to the advantages of the product. Under the same conditions, it has twice the power saving than the traditional SCR medium frequency. With 100% load design, it can work continuously for 24 hours and improve heating quality.

3.3 Our company can provide a wide range of induction melting furnaces. The capacity ranges from 1kg to 20Ton and for metals such as zinc, copper, steel, iron, aluminum, lead, etc.

3.4 The steel metal induction melting furnace has the advantages of wide application, easy operation, small floor area required, environmental friendliness, fast heating speed, low power consumption, high efficiency, and good effect.
