Wondery WDL-ZP-110KW Cast Iron Steel Induction Melting Furnace Heater Medium Frequency Type (110 kW; 50 kg)

Application

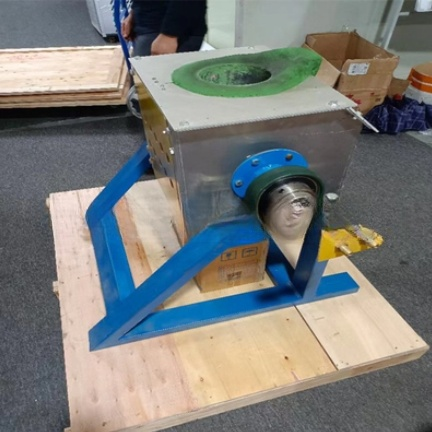

The electric induction melting furnace can be used to melt cast iron or steel with a max temperature of 1900 degree celcius. The medium inducton melting furnace is of tilting type. The furnace takes a small size, and is very convenient in operation. The electric metal melting furnace has alarm function and fault detection function, such as fault state protection and display including overcurrent, overvoltage and water shortage, etc.

Specifications

Energy: Electric Induction

Working Power: 110KW

Input voltage range: 70V-550V

Output oscillation frequency: 1-20KHZ

Output current: 30-200A

Weight:

+ Main machine: 80kg;

+ Control cabinet: 65kg

Dimension:

+ Furnace: 1050*790*1200mm (L*W*H);

+ Power supply: 820*420*890mm (L*W*H);

+ Control cabinet: 550*400*510mm (L*W*H)

Capacity: 50KG cast iron

Crucible Type: Graphite

Max temperature: 2000 Degree Celcius (hearth)

Cooling type: Water cooling

Cooling water requirement: ≥0.3Mpa; ≥20L/min

Supply scope:

Heating power source, 1 set;

Foot switch, 1 pc;

Connection wire 2pcs; single wire 1 pc;

Electric induction melting furnace body 1set; flexible connection cable 2pcs;

Protective cap 1 set; protective gloves 1 pair;

User manual 1 copy;
