Wondery WDL-ZND-280 Electric Resistance Hot Dip Galvanizing Production Line Kettle (280KW; 850℃)

Furnace shell: 235 steel plate, 6mm

Furnace body cover plate: 235 steel plate, 14mm

Thermal insolation layer: 1200℃ ceramic fiber board; 1000*600*50mm

Impervious layer: Light weight castbale; 51ACX

Anchoring parts: Stainless steel, 310

Furnace shell painting: High temperature silver powder, 14#

Zinc Kettle: XG08

Rated power: 280KW

Rated voltage: 380/220V

Max temperature (atmosphere): 850℃

Frequency: 50HZ

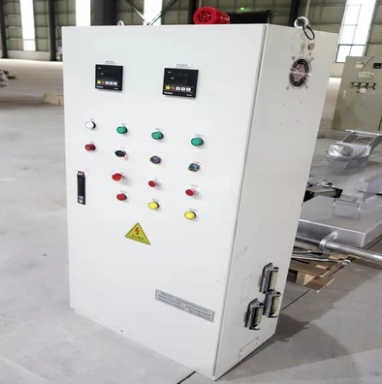

Temperature control zone: 4 zones

Zinc kettle size: 3200*800*800mm (L, W,H)

Empty furnace temperature rise time: ≤120 min

Temperature uniformity: ±10℃

Overall size: 4200*1500*1300mm (L*W*H)

Weight: 9000kg

2. Furnace Structure

The furnace cover is made of refractory fiber cotton of Isolite Japanese brand, which has good thermal insulation, convenient maintenance and long service life.

The furnace bottom is equipped with anti-seepage layer to prevent leakage of molten zinc.

5.What is hot dip zinc galvanizing process?

The zinc galvanizing furnace involves a zinc kettle which is to keep molten zinc liquid. And the parts are kept in the zinc kettle so as to be galvanized. The zinc kettle is made of special steel material with low carbon and silicon contents. It is of grade XG08 from Ansteel which has the strength to overcome the collision of zinc, and can ensure high temperature.
