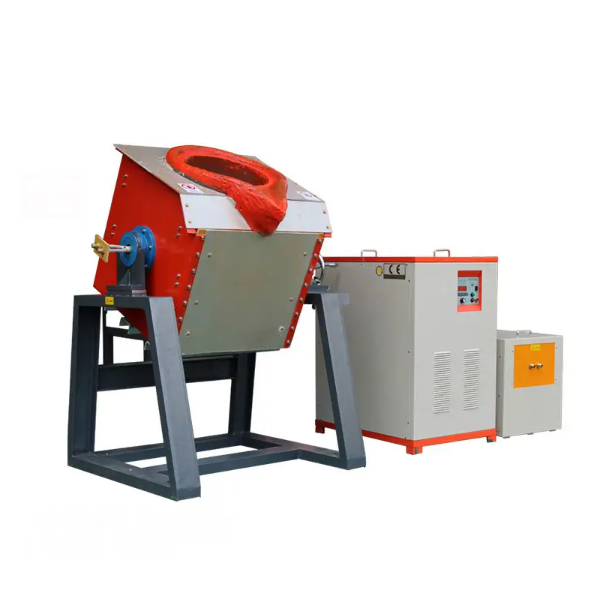

Wondery WDL-WDL-15KW Cast Iron Steel Induction Melting Furnace Heater Medium Frequency Type (15 kW; 3 kg)

Application: Induction Of Cast Iron

Fuel: Electric Induction

Working Power: 15KW

Input voltage range: 70V-550V

Output oscillation frequency: 1-20KHZ

Output current: 3-22A

Weight:

+ Main machine: 30kg;

+ Control cabinet: 25kg

Dimension:

+ Furnace: 800*550*750mm (L*W*H)

+ Power supply: 530*290*520mm (L*W*H);

+ Control cabinet: 500*230*460mm (L*W*H)

Capacity: 3KG cast iron

Melting Cycle: 6-10mins

Customized service: Yes

Crucible Type: Graphite

Max temperature: 2000 Degree Celcius (hearth)

Cooling type: Water cooling

Cooling water requirement: ≥0.2Mpa; ≥6L/min

1.Supply Scope

The induction melting furnace is comprised of the following parts:

1 set of protective cap, 1 set of protective gloves, 1 set of metal melting furnace body,2 pcs of flexible connection cable, 2 pcs of connection wires, 1pc of single wire, 1pc of foot switch, and 1 set of mini induction melting furnace heating power source.

3.Main Features

3.1The main power devices of the induction melting furnace are all German Siemens brands, and the main electronic components are imported products (Motorola (diode), NEC (triode), ST (three terminal voltage regulator), FAIRCHILD, ON etc., which make them work stably and have higher reliability and durability.

3.2 The induction metal melting furnace adopts IGBT power device and unique frequency conversion

technology to operate stably and provide higher reliability and durability. It has the function of constant current and constant power control, which greatly optimizes the metal heating process, realizes efficient and fast heating, and gives full play to the advantages of the product. Under the same conditions, it has twice the power saving than the traditional SCR medium frequency. With 100% load design, it can work continuously for 24 hours and improve heating quality.
