Wondery WDL-RQWC9-60*600*13 Forging Parts Mesh Belt Furnace for Isothermal Normalizing Treatment (200-300kg/h; 220kW)

Electric Power: 380V, 3 Phase, 50HZ

Productivity: 200-300kg/h

Hardness: 150-200HB

Total Power: 220kW

Total Length: About 27m

Equipment Total Weight: 30000kg

Material: AISI8620, 20MnCrS5, Etc

Temperature Control: 4-zone PID Control

- Cooling Machine

The cooling machine is comprised of the conveyor, the cooling circulation fan, heat preservation body and driving device.

- Isothermal Normalizing Furnace

The isothermal normalizing mesh belt furnace for sale adopts the upper and lower

heating design via the heat radiation tubes. Each zone is set with one big

power hot air circulation fan to reach the temperature uniformity.

- Electrical control cabinet

The whole production process is managed by the computer and monitored by PLC system.

The control system controls the temperature, driving system, liquid level, etc.

The system has safety interlink and fault audible and visual alarm.

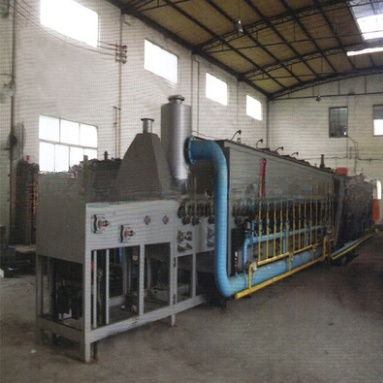

1. Mesh Belt Heat Treatment Furnace

The mesh belt furnace normalizing furnace is the key part of the line.Mesh belt furnace for heat treatment is comprised

of mesh belt driving device, heat preservation material, heating device, and

temperature control devices. The normalizing continuous mesh belt furnace is comprised

of the preheating area and furnace shell.
