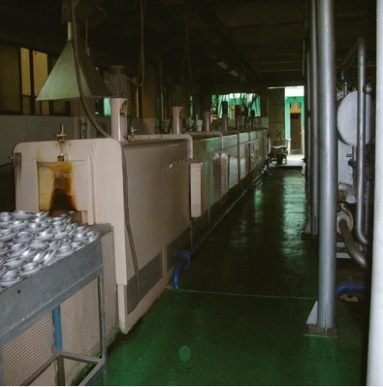

Wondery WDL-RCWG-160 Mesh Belt Type Aluminum Alloy Heat Treatment Furnace (160KW; 400kg/h; 400×12000×75mm)

Rated power (kw): 160

Effective working size (mm): 400×12000×75

Capacity: 400kg/h

Furnace type: Mesh Belt Type

Type: Resistance

Application: Batch Solution Heat Treatment

Customized service: Yes

Rated temperature: 600 Degree Celcius

Voltage: 220 3 Phase 50HZ

1. Introduction of Mesh Belt Furnace

The furnace is used for batch solution heat treatment of aluminum alloy parts.

Mesh belt furnace is a furnace type that uses intermittent or continuous mesh belt driven by machinery to pass the workpiece through the temperature controlled heating zone and then meet the requirements of heat treatment process, which is collectively referred to as mesh belt furnace.

Mesh belt heating furnace: it is composed of feeding table, heating section, discharging table, hot air circulation, mesh belt transmission and temperature control system. It is mainly used for heating aluminum and copper bars before red stamping, annealing of castings, glass and products, tempering of small parts and other heat treatments.

Mesh belt controlled atmosphere heat treatment production line: the furnace is divided into no muffle and muffle. It is a production line unit composed of feeding machine, quenching furnace, quenching oil tank, hoist and tempering furnace.

It is mainly applicable to quenching, carburizing and tempering heat treatment of batch small and medium-sized mechanical parts, such as standard parts, bearings, transmission chains, self tapping screws, textile hardware, hand tools, springs, spring pads, various textile needles and sewing needles.

After treatment, the workpiece surface is smooth, no decarburization, uniform hardness, small deformation and high quality

Mesh belt sintering furnace: it is composed of feeding platform, preheating section, sintering section, constant temperature section, rapid cooling section, ammonia atmosphere furnace andcontrol system. It is composed of feeding table, preheating section, sintering section, constant temperature section, rapid cooling section, ammonia atmosphere furnace and control system. It is mainly used for pressing metal, ore powder and other related powder metallurgy products, which is an ideal continuous sintering process under controllable atmosphere.
