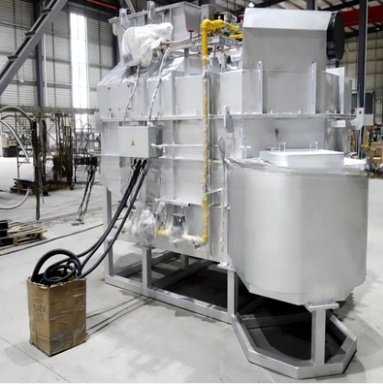

Wondery WDL-RBL-100 Industrial Continuous Aluminum Melting Holding Casting Furnace for Die Casting Operation (350kg; 100 kg/h)

Capacity: 100Kg/h

Holding capacity (kg): 350

Burner capacity:

- Melting burner kcal/h: 8×104

- Holding burner kcal/h: 8×104

Overall Size, mm: High: 2200; Long: 2900; Wide: 1550

Liquid Outlet Size (mm): 320×350

Furnace type: Continuous

Fuel: Natural Gas, LPG, Or Diesel

Customized service: Yes

Melting Burner: 2 Chamber 2 Burner Type

Control Accuracy: ±5℃

Control System: Mitsubishi PLC

1. Application of Aluminum Casting Furnace

1.1 The industrial aluminum melting and holding furnace is used along with the die-casting machine, and it has a high efficiency, and a low labor strength.

1.2 The industrial aluminum melting furnace has the features of low metal melting loss rate. Metal burn loss is lower than 1.5%.

1.3 The aluminum metal melting furnace has the advantages of flexible applications, suitable for various sites.

1.4 The industrial aluminum liquid temperature control accuracy is at ±5℃.

1.5 The industrial metal melting furnace works with a variety of fuels such as natural gas, LPG, and diesel.

1.6 The lining service life of the aluminum melting furnace is greater than 5 years.

1.7The control system of the aluminum alloy melting furnace adopts Mitsubishi PLC programmable controller, which can operate safely and reliably.
