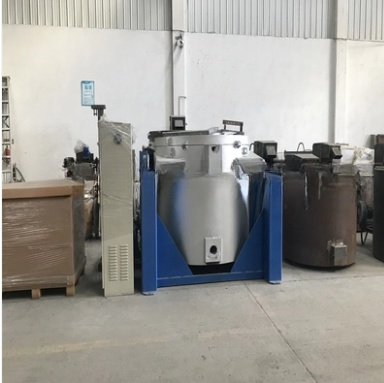

Wondery WDL-RALQ-1000 Gas Fired Tilting Type Aluminum Scraps Crucible Melting Furnaces (500kg/h;1000kg)

Crucible capacity: 1000kg

Furnace type: Crucible melting furnace

Crucible material: Graphite crucible

Melting rate: about 500Kg/Hr ( at continuous working status)

Fuel gas: natural gas with heat value at 8400Kcal/M3

Fuel gas consumption: about 80M3/ton aluminum

Rated working temperature: 850℃

Furnace body outer wall temperature: less than room temperature +50 degree Celsius.

Rated working condition:

A) The melting furnace and other facilities are working at a normal condition;

B) The heat value of the fuel gas meets 8400Kcal/ Nm3;

C) The furnace is working in a continuous manner.

D) The fuel gas consumption is calculated based on 3 hours of continuous working.

1. What is a crucible melting furnace?

The crucible melting furnace is applicable to melting of ferrous metal and alloy of low melting point.

The rated temperature of the furnace is 850℃. The crucible melting furnace uses a refractory

crucible which contains the metal charge. The charge is heated via gas heating via conduction

of heat through the walls of the crucible.

3.Supply Scope of Crucible Melting Furnace

Metal melting furnace body, 1 set;

Control box, 1 set;

Natural gas burner, 1 set;

Automatic temperature controller, 1 set;

Thermal coupling, 2 pieces; (1 piece for standby)

Graphite crucible, 1 piece, Vesuvius or Baidun brand;

Graphite crucible fire blocking ring, 1 piece;

Hydraulic tilting system, 1 set;

Manual, 1 copy.
