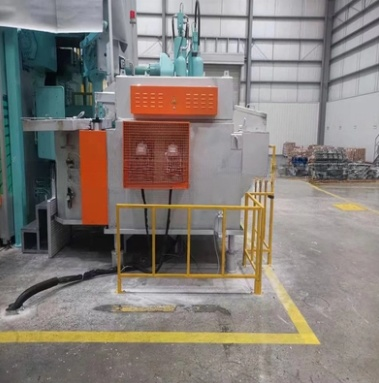

Wondery WDL-BJD-2500 Energy SavingIndustrial Immersion Type Electric Aluminum Holding Furnace (2500Kg; 36kW; 3200*2200*1700 mm)

Furnace : Refractory Material

Customized service: Yes

Furnace type: Energy-saving Immersion Type

Holding Capacity: 2500kg

Rated Power (kw): 36

Overall Dimension (mm): 3200*2200*1700

Ladling Size (mm): 700*700

1. Characteristics

1.1 Ultra-high heat utilization efficiency, and low power consumption.

The aluminum holdig furnace saves power consumpstion by more than

40% compared wih the traditional radiation type holding furnace.

1.2 There is no aluminum liquid burning loss or slag hanging phenomenon.

1.3 The aluminum holding furnace adopts high quality refractory material

with a long lining service life (up to 5 years under normal use condition)

1.4 Adopt Japanese imported protective tube which has a long service life,

safe and stable.

1.5 The Control Panel has multiple safety functions such as aluminum

liquid over-temperature alarm, atmosphere over-temperature alarm, heater

circuit breakage alarm, etc.

1.6 The immersion type heating element is imported from Germany.

3. Product Scope

Our company has a wide range of aluminum melting furnaces and aluminum

holding furnaces for die casting operation. We have electric type, gas type or oil

type aluminum holding furnaces. We also have induction type, electric resistance type,

gas type or oil type aluminum melting furnace.
