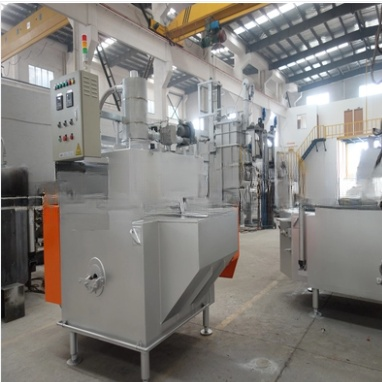

Wondery WDL-BDD-1000 Industrial Low Pressure Casting Aluminum Holding Furnace (36kW; 1000kg)

Furnace : Resistance Heating

Rated Power: 36KW

Holding Capacity: 1000kg

Application: Low Pressure Casting

Max Pressure: 0.09Mpa

Overall Dimension (mm) L* W*H: 2400*2000*1450

1. Highlights

1.1 The electric aluminum holding furnace adopts the high strength steel plate with a great strength.

1.2 The resistance heating method has a big heat radiation range,

and a low metal burning loss. The heating element is equipped with the protection casing pipe of good conductivity.

1.3 Direct measurement of aluminum liquid temperature. The electric aluminum holding furnace has

double temperature control and measurement, which enables a control accuracy of ±5℃ of the aluminum liquid.

1.4 Lining is made of imported high-quality material, and casted as a whole.

1.5 The lining has a life of 5years based on normal use.

1.6 The electric aluminum holding furnace is equipped with asafety valve to prevent over-pressure.

1.7 The electric aluminum holding furnace can move horizontally and up-down based on the customers requirement.
