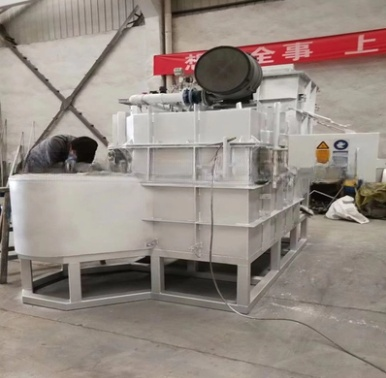

Wondery WDL-BCY-10000 Aluminum Holding Furnace Oil Fired Aluminium Melting (10000Kg; 850℃)

Appication: Preserving The Temperature Of The Non-ferrous Metal

Melting pool capacity: 10000Kg (liquid gravity 2.4)

Oil: diesel; calory 9400Kcal/KG

Melting chamber rated temperature: 850℃ (atmosphere)

Temperature control accuracy: ±5℃;

Fuel consumption: less than 8KG/H (working for 24 hours a day and 3 days continuously)

Power: 380V, 50HZ, 3P.5 wire.

1. Features

The pool type aluminum holding furnace is mainly used for

preserving the temperature of the non-ferrous metal.

The holding furnace for gravity casting adopts the high quality

burner with a large flame radiation size and a high heat efficiency.

The temperature of the aluminum liquid is controlled with an

accuracy of ±5℃. The oxygen content of the furnace atmosphere

is less than 5% which could effective prevent generation of oxides.

The die casting holding furnace for aluminum is designed with a

superb heat insulation structure which effectively reduce heat

radiation, and improve heat efficiency.

The holding furnace for aluminum casting process is lined with high

alumina bricks with a service life of more than 3 years.

The aluminum holding furnace is equipped with the special burning

system and the supporting air fan with a low working noise for both.

3. Furnace Structure

3.1 steel structure

The shell of the oil fired aluminum holding furnace is made of steel

plate and sectional steel. The furnace is designed with the up-down

function so as to work with other equipment.

3.2 lining

The melting pool is built with high alumina bricks which have a high

strength, a long service life, and non-adhering with molten aluminum.

(compression strength: 140Mpa at a temperature higher than 110℃;

linear change rate: 0.1%). Heat insulation material used is of 1st grade

silicate aluminum fiber board.

3.3 burning system

The aluminum holding furnace is equipped with the diesel oil burning

system. It has the functions of automatic temperature control, automatic

ignition, and flame detection. When the furnace reaches the set temperature,

the burner stops. When the furnace temperature is lower than set value, the

burner starts to work automatically. The burning is set with a safety

protection function which could cut off main burner and ignition device

automatically if the burner is not completely working of flame goes out.

Additionally there is an interlock device between the pressure switches

of oil pipe and air pipe. The temperature is controlled by PID regulation method.

3.4 liquid outlet

The aluminum liquid outlet is manually operated.

3.5 temperature control

Automatic temperature control flame switch, over-temperature alarm,

and flame-out protection.

a) Molten aluminum temperature control;

b) Hearth temperature control;

c) Chimney temperature measurement;

d) Safety device and automatic control system;
