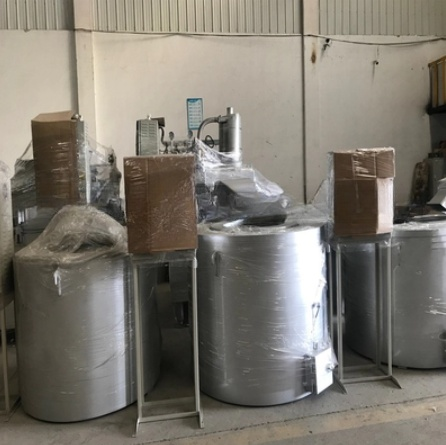

Wondery WDL-1000 Gas Tilting Industrial Metal Melting Furnace Aluminum Melting Induction (1000kg; 500Kg/Hr)

Crucible capacity: 1000kg

Furnace type: Industrial metal melting furnace

Crucible material: Graphite crucible

Melting rate: about 500Kg/Hr ( at continuous working status)

Fuel gas: natural gas with heat value at 8400Kcal/M3

Fuel gas consumption: about 80M3/ton aluminum

Rated working temperature: 850℃

Furnace body outer wall temperature: less than room temperature +50 degree Celsius.

Rated working condition:

A) The melting furnace and other facilities are working at a normal condition;

B) The heat value of the fuel gas meets 8400Kcal/ Nm3;

C) The furnace is working in a continuous manner.

D) The fuel gas consumption is calculated based on 3 hours of continuous working.

Lead time: 45 days

Application: Die Casting

Melting Cycle: About 2 Hours

What is a gas fired metal melting furnace?

The industrial metal melting furnace is applicable to melting of ferrous metal and alloy

of low melting point. The rated temperature of the furnace is 850℃. The crucible melting

furnace uses a refractory crucible which contains the metal charge. The charge is heated

via gas heating via conduction of heat through the walls of the crucible. The gas fired

metal melting furnace works with natural gas, LPG gas, methanol, propane, etc.

The burner used is of quality brands such as Baltur, Riello,etc.
