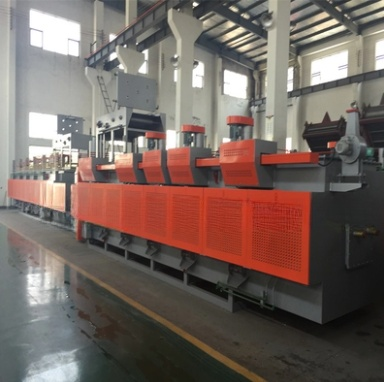

Wondery RCWC9-50*500*8 Continuous Roller Furnaces Conveyor Electrical Mesh Belt Resistance Heating (50mm*5000mm; 286kw; 200-250kg/h)

Furnance size: 50mm*5000mm

(mesh belt width*height).

Total loading power: about 286kw; power supply 3phase, 380v, 50Hz; 　

Total length: about 30m;

Units of line: charging machine, precleaning machine, quenching

Furnace, quenching tank, oil removing stand, post-cleaning machine,

Tempering furnace.

Total weight: about 42ton;

1 Working temperature:

Precleaning machine: 40～60℃; quenching furnace:820～950℃; quenching

Tank.60～80℃; post-cleaning machine: 40～60℃; tempering furnace: 300～450℃;

2 productivity

Quenching: 200-250kg/h ( varying with the workpiece size, weight, Stacking method, and other related conditions)

3 furnace atmosphere

Quenching furnace: methanol+propane

Tempering furnace: air;

4 Charging machine

Mesh belt width: 500 mm

5 Pre-cleaning machine

Mesh belt width: 500 mm

Tank volume: 1.5m3;

6 Mesh belt type quenching furnace

Mesh belt width: 500mm

Inlet length: 2000mm

Preheating belt length: 1100mm

Working area length: 5000mm

Effective height: 80mm

7 quenching oil tank

Mesh belt width : 800mm

Oil tank length: 3800mm

Oil tank width: 1600mm

Oil tank depth: 1800mm

Tank volume: 8 m3

8 oil removing stand

Mesh belt width : 800mm

9 Post-cleaning machine

Mesh belt width : 800mm

Tank volume: 1.5m3

10. Mesh belt tempering furnace

Effective height: 100mm

Mesh belt width : 800mm

Heating area length: 5000mm

1.Buyer Requirement

1.1 product: fasteners, sleeves;

1.2 process: bright quenching, tempering;

1.3 productivity: quenching: 200-250kg/h;

3. Equipment General Introduction and Main Features

1 General Introduction

1.1 The heat treatment line combines the advanced technologies from

Taiwan. Its key parts are imported from overseas.

1.2 The production line is comprised of magnetic belt charging

machine, pre-cleaning machine, support roller quenching furnace,

quenching tank, oil removing stand, post-cleaning machine,

support-roller mesh belt tempering furnace, and electrical control system.

Features:

2.1 To meet the production needs of fastening parts, the furnace

employs Taiwan technology, and improves its energy-saving effect in

the area of refractory lining.

2.2 The production line employs low-voltage heating through the

transformer to prolong the service life of the heating tubes.

2.3 The mesh belt is supported by the support rollers with synchronized

movement so that the mesh belt bears a minimum tension.

2.4 The rollers are supported by special high-pressure sealed bearing.

2.5 The mesh belt is designed with abnormal transportation alarm device

to assure the stable movement of the mesh belt.

2.6 The drip-in atmosphere is gasified by a gasifier and then sent into

the furnace. The atmosphere is monitored and controlled continuously

by an oxygen probe.

2.7 The hot mesh belt returns back to the entrance of the furnace and

preheats the cold partss, which saves energy greatly.

6. Production Line Power and Energy Consumption

6.1 power

Heating power: 380V±10%, 3 phase, AC, 50HZ;

Measuring and control system: 220V±10%, 50HZ

Heating system: about 310kW

Driving system power and other consumption spots: about 24kW

Power supply of the whole line: about 334kW

Power consumption at normal working: about 150kW

6.2 atmosphere inlet pipe parameters

Methanol inlet pipe: 2-3 L/h ; ≥0.04 Mpa;

Propane inlet pipe: automatic control with supply ≤500L/h; supply

pressure ≥0.04Mpa;

6.3 cooling water

Water quality: according to state standard low-calcium industrial

circulating water;

Suspended substance: max 10mg /L;

Filter mesh belt hole size: max 0.3mm;

Inlet temperature: (max) 30℃(in summer)

Inlet temperature: (min)5℃ (in winter)

Temperature difference: 10℃

Inlet pressure: 0.2 Mpa;

Max water consumption: about 30m3/h (circulating use)

6.4 Supplementary Equipment ( supplied by the buyer)

The cooled water tank and cooling tower are usually mounted

outside the workshop

but near the production line. The cooling power capacity

should be ≥30m3/h.

7. Technical Specification Per Unit

Magnetic Belt Charging Machine

The charging machine is comprised of magnetic belt conveyance system,

frame, magnetic belt and driving system. The machine frame is made

from sectional steel and steel plates.

1 Chain and sprocket wheel: P=25.4mm, 1 set;

2 reducing gear, 0.55kw, 1 set

3 magnetic belt: 500*3450*1/2mm (SUS304) 1 piece

4 Strong force magnetic steel: 28*26*12 1 group;

5 Vibration motor: 250W, 1 set;

8.Mesh Belt Type Pre-cleaning Machine

The mesh belt cleaning machine is of the immersion type. It has 3

working positions which are immersing and cleaning, soap water

jetting, and strong-air drying. The charging machine is equipped with

the strong force nozzle. And it is flanked by one water oil separation

tank and one oil collection tank. The oil collected could be used.

 Tank body

The cleaning tank body is fabricated from steel plates and sectional

steel which are welded together.

 Mesh belt driving device

Mesh belt: 500mm 1 piece;

Chain and sprocket wheel : P=50.8mm, 1 set;

　Reducing gear: 0.37kW, 1 set;

 Cleaning tank volume: 1500L;

 Cleaning jetting pump: 2.2kW d=50mm 1 set;

 Heating device: 380V/4kW, 6 pieces, 24KW in total;

 Oil and water separation tank

　Oil and water separator, 1 set;

Liquid pump, 0.37kW, 1 set;

Gear motor, 0.10kW 1 set;

 Drying fan at the exit, 1 set;

 Temperature controller, Honeywell, 1 set;

Thermal resistor, PT100, 1 piece;

 Driving detection device, Omron 1 set;

 Overloading protector, 1 set;

9.Mesh Belt Quenching Furnace　

The quenching furnace is the key part of the production line. It is

comprised of furnace shell, front machine stand, heat preservation

material, heating device, temperature control device, and atmosphere

supply device.

9.1Main parameters:

Mesh belt width: 500mm

Working area length: 5000mm

Entrance length: 2000mm

Preheating area length: 1100mm

Temperature control: 4-zone PID control;

Rated power: 150KW;

Furnace temperature uniformity:≤±5℃　temperature uniformity for the

same section:≤±3℃; furnace outer wall temperature rise: ≤50℃

Temperature control accuracy: ±1℃;

Carbon potential control accuracy: ≤±0.05%C, measurement range: 0-1.5%C;
