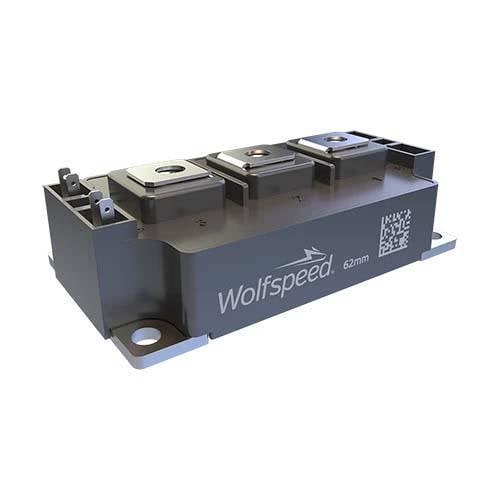

Wolfspeed HAS175M12BM3 Half Bridge SiC, Module, 175A, 1200V, 62mm, BM3, Half-Bridge, Industrial, Harsh Environment

Width: 62 mm

Height: 31 mm

Length: 105 mm

Technology: SiC

Configuration: Half Bridge

Mounting Style: Screw Mount

Vf - Forward Voltage: 1.8 V

Vr - Reverse Voltage: 800 V

Pd - Power Dissipation: 789 W

Vgs - Gate-Source Voltage: - 8 V, + 19 V

Id - Continuous Drain Current: 228 mA

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 40 C

Rds On - Drain-Source Resistance: 10.4 mOhms

Vds - Drain-Source Breakdown Voltage: 1.2 kV

Vgs th - Gate-Source Threshold Voltage: 2.5 V
