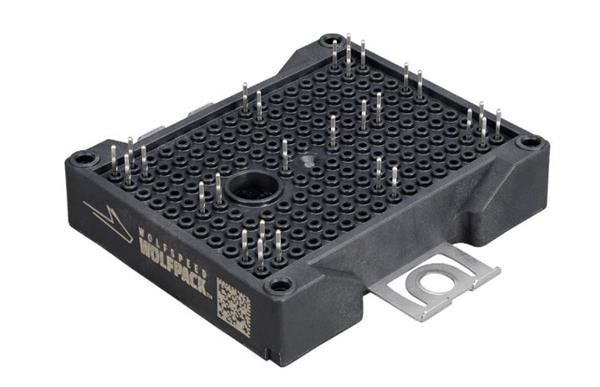

Wolfspeed CAB5R0A23GM4 Half Bridge SiC, Module, 5mohm, 2300V, 48 mm, AlN GM4, Half-Bridge, Industrial

Technology: SiC

Configuration: Half-Bridge

Mounting Style: Press Fit

Vf - Forward Voltage: 5.8 V

Pd - Power Dissipation: 10 mW

Vgs - Gate-Source Voltage: - 8 V, + 19 V

Id - Continuous Drain Current: 150 A

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 40 C

Rds On - Drain-Source Resistance: 5 mOhms

Vds - Drain-Source Breakdown Voltage: 2.3 kV

Vgs th - Gate-Source Threshold Voltage: 2.5 V
