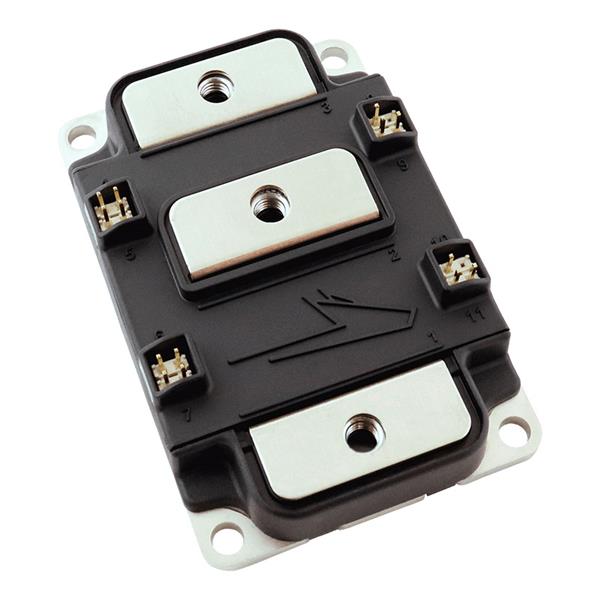

Wolfspeed CAB400M12XM3 Half Bridge 1.2kV 400A SiC HalfBridge Module

Technology: SiC

Unit Weight: 220.541 g

Configuration: Dual

Mounting Style: Screw Mount

Transistor Polarity: N-Channel

Vf - Forward Voltage: 6 V

Vr - Reverse Voltage: 1.2 kV

Pd - Power Dissipation: 50 mW

Vgs - Gate-Source Voltage: - 4 V, + 15 V

Id - Continuous Drain Current: 395 A

Maximum Operating Temperature: + 175 C

Minimum Operating Temperature: - 40 C

Rds On - Drain-Source Resistance: 5.3 mOhms

Vds - Drain-Source Breakdown Voltage: 1.2 kV

Vgs th - Gate-Source Threshold Voltage: 1.8 V
