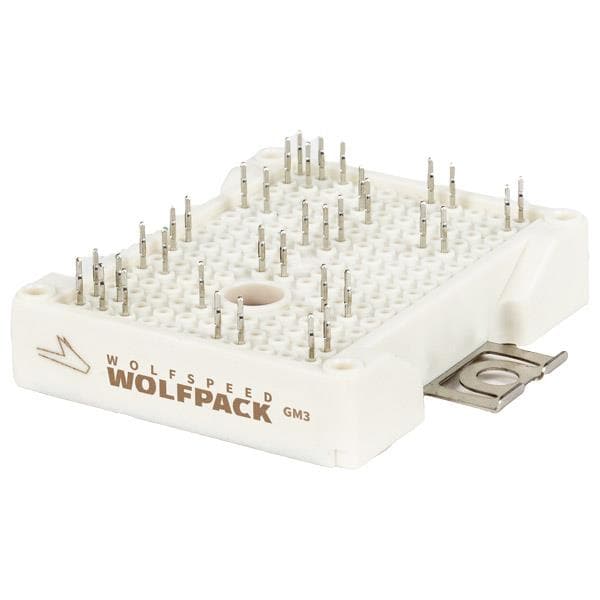

Wolfspeed CAB006A12GM3 Half Bridge SiC, Module, 6mohm, 1200V, 48 mm, AlN GM3, Half-Bridge, Industrial

Width: 42.5 mm

Height: 12.25 mm

Length: 51 mm

Technology: SiC

Configuration: H-Bridge

Mounting Style: Screw Mount

Number of Channels: 2 Channel

Transistor Polarity: N-Channel

Vf - Forward Voltage: 4.9 V

Vr - Reverse Voltage: 1.2 kV

Pd - Power Dissipation: 10 mW

Vgs - Gate-Source Voltage: - 4 V, + 15 V

Operating Temperature Range: - 40 C to + 150 C

Id - Continuous Drain Current: 200 A

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 40 C

Rds On - Drain-Source Resistance: 6 mOhms

Vds - Drain-Source Breakdown Voltage: 1.2 kV

Vgs th - Gate-Source Threshold Voltage: 3.6 V
