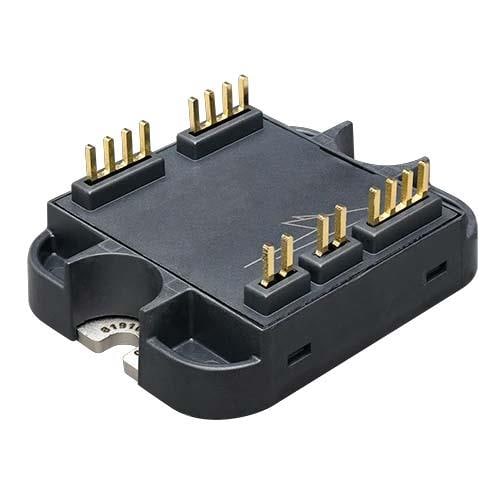

Wolfspeed CAB003M09DM3 Half Bridge SiC, Module, 2.5m?, 900V, 40.8mm, DM, Half-Bridge, Industrial

Technology: SiC

Configuration: Module

Mounting Style: Press Fit

Vf - Forward Voltage: 4.5 V

Vr - Reverse Voltage: 400 V

Pd - Power Dissipation: 1.163 kW

Vgs - Gate-Source Voltage: - 8 V, + 19 V

Id - Continuous Drain Current: 518 A

Maximum Operating Temperature: + 175 C

Minimum Operating Temperature: - 40 C

Rds On - Drain-Source Resistance: 3.25 mOhms

Vds - Drain-Source Breakdown Voltage: 900 V

Vgs th - Gate-Source Threshold Voltage: 2.1 V
