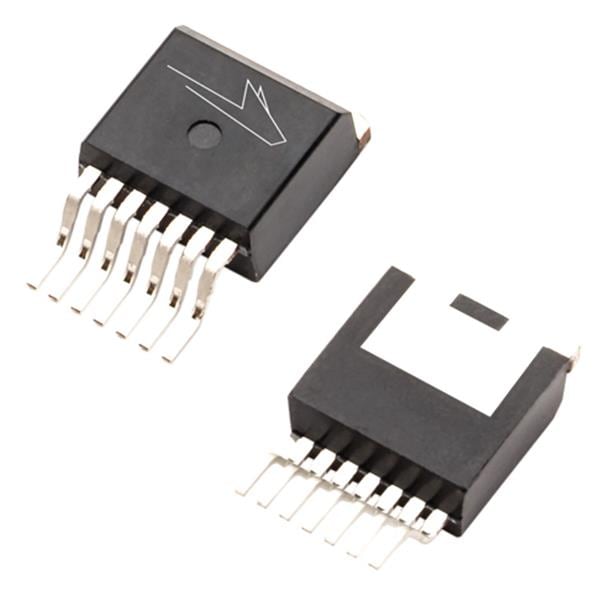

Wolfspeed C2M1000170J-TR SiC MOSFETS SIC MOSFET 1700V RDS ON 1 Ohm

Technology: SiC

Unit Weight: 1.600 g

Channel Mode: Enhancement

REACH - SVHC: Details

Mounting Style: SMD/SMT

Qg - Gate Charge: 13 nC

Moisture Sensitive: Yes

Number of Channels: 1 Channel

Transistor Polarity: N-Channel

Pd - Power Dissipation: 78 W

Vgs - Gate-Source Voltage: - 10 V, + 25 V

Id - Continuous Drain Current: 5.3 A

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 55 C

Rds On - Drain-Source Resistance: 1 Ohms

Vds - Drain-Source Breakdown Voltage: 1.7 kV

Vgs th - Gate-Source Threshold Voltage: 3.1 V
