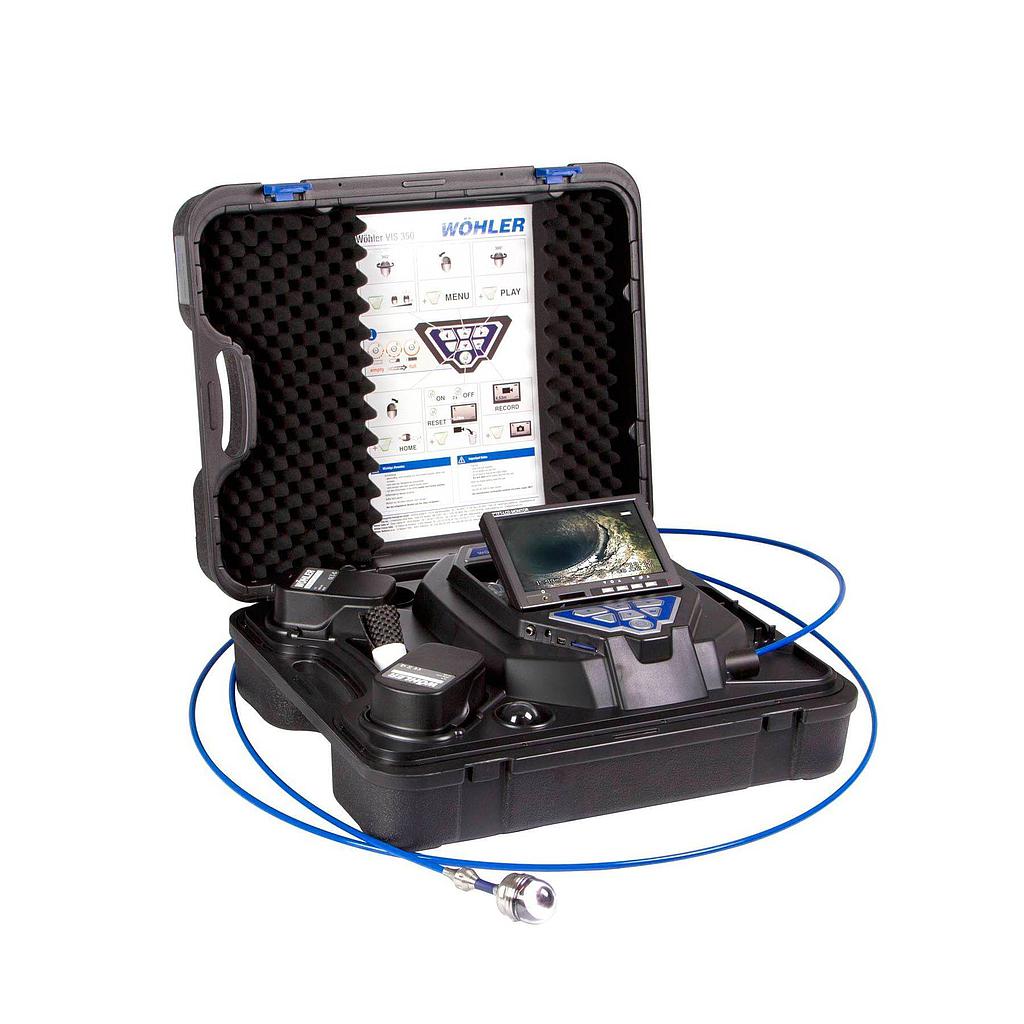

Wöhler VIS 350 Visual Inspection Camera (30m, fixed head)

Monitor

Dimensions housing: 176 x 114 x 32 mm

TFT-display: 7" / 16:9 format

Video out: RCA signal

Wöhler pan / tiltable camera head Ø 40, detachable

Type: 1/3" COLOR CMOS

Pixels: 768 x 576 (PAL)/656 x 492 (NTSC)

Light sensitivity: 0.5 Lux

Lens f = 2.3 mm. F = 2.5

Viewing angle 130°

Light source:12 white LEDs

Degree of protection: IP 67

Dimensions: Ø40 x 60 mm

Transmitter frequency: 9.2 kHz

Wöhler miniature camera head Ø 26. detachable

Type: 1/3" COLOR CMOS

Resolution: 420 lines

Pixels: 768 x 576 (PAL)/656 x 492 (NTSC)

Light sensitivity: 0.5 Lux

Lens: f = 2.3 mm. F = 2.5

Viewing angle: 145°

Light source: 12 white LEDs

Degree of protection: IP 68

Dimensions: Ø26 x 38 mm

Transmitter frequency: 9.2 kHz

Push rod: 20m, Ø6.5mm

Plastic case dimensions: 51 x 43 x 17 cm

Distance measurement: Electronic meter counter

Memory: 4Gb SD card (5h recording capacity)

Interface: Mini USB port

Video

Scope of delivery:

Wöhler VIS 350 Sevice Camera

Digital meter counter

Pan and tilt color camera head Ø 40 mm V2

Wöhler TFT monitor 7" with 2 m cable

SD memory card 4 GB SD for recording of pictures and videos

Mini USB cable

30 m push rod 6.5 mm

5 replacement plastic domes

1 anti-slide-mat

2 NiMH batteries and charger

Plastic case
